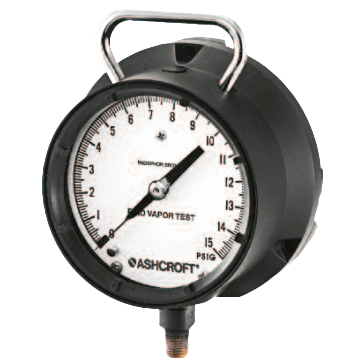

1150H Reid Vapor Test Gauge
Brand: Ashcroft Inc.The Ashcroft Type 1150H is a specialized pressure gauge used by the petroleum industry to measure vapor pressures of various petroleum products.
Features- Accuracy ASME B40.100 Grade 2A (±0.5% of span)
- Dial size 4-1/2" only
- White dial and black pointer
Specifications
Brand
Accuracy
- ± 0.5% of Full Scale ASME Grade 2A
Applications
- Oil & Gas Applications
- Petroleum Vapor Pressure Measurement
Approvals & Certifications
- CRN
- ISO 9001
Enclosure, Body Material
- Cast Aluminum
Lens
- Window: Glass Lens
Materials of Construction
- Bourdon Tube: Grade A Phosphor Bronze
- Dial: Black Aluminum with White Markings
- Socket: Brass
Mounting
- Stem
Movement
- 400 Stainless Steel Teflon Coated, Pinion & Sector Shaft, Rotary Geared
NPT Connection
- 1/4" NPT Male
Pressure Range
- bar: 1 to 69
- kPa: 103.4 to 6,895
- psi: 15 to 1,000
Pressure Type
- Gauge
Ring Material
- Threaded Aluminum Black Epoxy Coated
Size
- Dial: 4.5"
