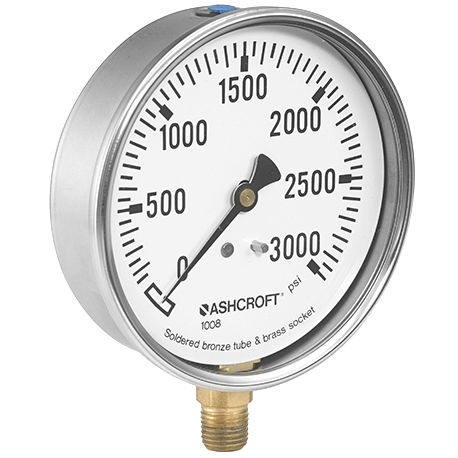

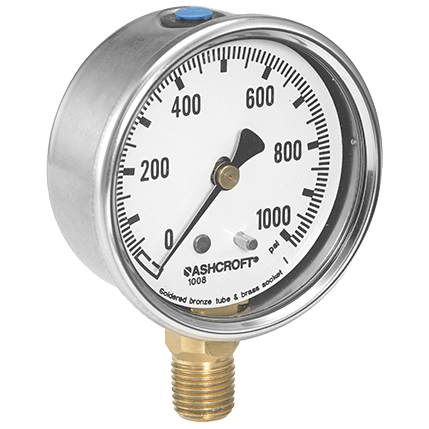

1008A/AL Stainless Steel Commercial Gauge
Brand: Ashcroft Inc.
AshcroftType 1008A gauges are synonymous with durability, flexibility and exceptional quality. The Type 1008A case and ring assembly is constructed of durable, corrosion-resistant stainless steel. The gauge enclosure is sealed to provide maximum protection in adverse environmental conditions.
The core of the Type 1008A is the patented PowerFlexTM movement. This movement provides a higher level of resistance to shock, vibration and pulsation than conventional gauge movements.
Both 63 mm and 100 mm Type 1008A gauges are available dry, field fillable, glycerin filled or silicone filled. Weld nuts are standard on all back connection gauges, therefore, any back-connection gauge with the addition of a U-clamp accessory kit, can be panel mounted.
Features- 63 mm (2-1/2") and 100 mm (4" case sizes)
- Corrosion-resistant stainless steel case/ring
- Dry, field-fillable or liquid-filled versions
- Patented powerflex movement
- True zero indication, a unique safety feature
- Two-year warranty on liquid-filled gauges
Specifications
Brand
Accuracy
- ASME B40.100, Grade B, ± 3-2-3%
Ambient Temperature Range
- Glycerin: -7° to 65° C (20° to 150° F)
- Silicone: -40° to 65° C (-40° to 150° F)
Applications
- Hydraulics & Pneumatics
- Irrigation Equipment
- Machine Tools
- OEM Equipment
- Pressure Washers & Sprayers
- Pumps & Compressors
Enclosure, Body Material
- Dry (1008A) or Liquid Filled (1008AL): 304 Stainless Steel
Fill Material
- Glycerin
- Silicone
Lens
- Window: Polycarbonate Lens
Materials of Construction
- Bourdon Tube: C Shaped Bronze (Vacuum-600 psi & Compound), Helical (1,000 to 6,000 psi)
- Bourdon Tube: Helical Stainless Steel (10,000 to 15,000 psi)
- Brass, with O-Ring Case Seal
- Dial (Black Figures on White Background), Pointer (Black): Aluminum
Mounting
- Front Flange Mount
- Panel Mount
- Retrofit Flange Mounting

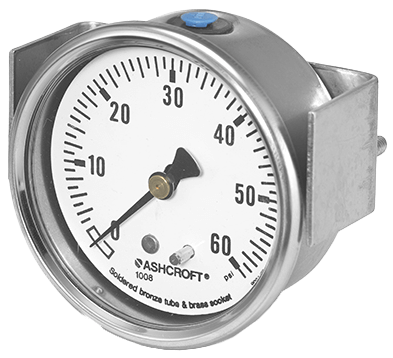

- U-Clamp Mount
NPT Connection
- Lower & Back: 1/4" NPT Male
Orifice Size
- Restrictor: Brass Throttle Plug 0.013" (0.33 mm)
- Socket: Throttle Plug 0.007" to 0.063" (0.17 to 1.6 mm) JIS, DIN & Other Connections on Pplication
Pressure Range
- bar: 0 to 1,034
- kPa: 0 to 103,400
- psi: 0 to 15,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Process Temperature
- Dry Gauge: -40° to 65° C (-40° to 150° F)
Ring Material
- 304 Stainless Steel, Crimped
Size
- 2-1/2" (63 mm)
- 4" (100 mm)
