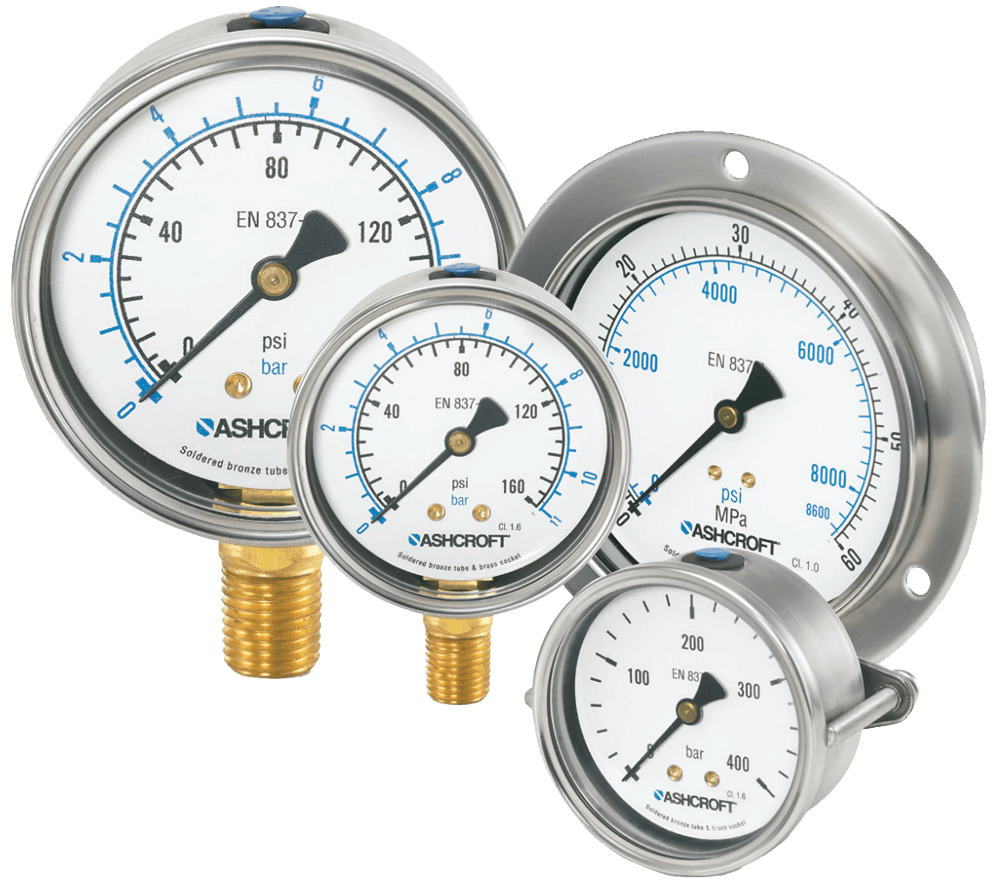

Accuracy
- 63 & 100 mm: ± 1% of Span Per EN837-1
- 63 mm: ± 1.6% of Span Per EN837-1
- 63 mm: ASME B40.100, Grade A, ± 2-1-2% of Span
Ambient Temperature Range
- Dry with Flutterguard & Silicone: -40° to 70° C (-40° to 158° F)
- Glycerin: -7° to 70° C (20° to 158° F)
Applications
- Compressors
- Hydraulic Applications
- Hydraulic Hand Tools
- Injection Molding Equipment
- Irrigation Equipment
- Large Volume
- OEM Applications
- Paint Sprayers Equipment
- Pressure Washers & Sprayers
- Retrofits
Approvals & Certifications
- CE
- CRN
- PED (2014/68/EU)
- REACH
- RoHS (EU Directives 2011/65/EU & 2015/863)
BSP Connection
- 1/4" BSPT Male
- G 1/2" Male
- G 1/4" Male
Lens
- Glass Lens
- Polycarbonate Lens
- Safety Glass
Materials of Construction
- Dial [Black Figures on White Background (Blue secondary Scale for Dual Scale Dials)] & Pointer (Black): Aluminum
Mounting
- Front Flange Mount
- Panel Mount
- Stem
- U-Clamp Mount
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
- 1/8" NPT Male
Operating Pressure
- Fluctuating: 80% of Full Scale Value
- Short Time: Full Scale Value
- Steady: 75% of Full Scale Value
Orifice Size
- Restrictor: 0.007" to 0.063" (0.17 to 1.6 mm)
Overpressure & Static Pressure Limits
- Overpressure: ≤ 100 bar Ranges, 125% of, Maximum
Pressure Range
- bar: 1 to 1,034
- Inches Hg: -30 to 0
- kPa: 103.4 to 103,400
- psi: 15 to 15,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Process Connection Material
- Brass / Soldered (Vacuum-8,700 psi & Compound), Brazed (10,000-15,000 psi)
Process Temperature
- Dry with Flutterguard & Silicone: -40° to 70° C (-40° to 158° F)
- Glycerin : -20° to 70° C (-4° to 158° F)
Proof Pressure
- > 100 to ≤ 600 bar, 115% of, Maximum
- > 600 to ≤ 1,000 bar, 110% of, Maximum
Ring Material
- 304 Stainless Steel, Crimped
Size
- 2-1/2" (63 mm)
- 4" (100 mm)
Storage Temperature
- -40° to 70° C (-40° to 158° F)
Temperature Effect
- ± 0.04% of Span / °C, Reference Temperature 20° C (68° F)
- ± 0.4% of Span/-7.7° C (18° F), Reference Temperature 20° C (68° F)
Wetted Materials
- 316L Stainless Steel
- Brass
- Bronze
