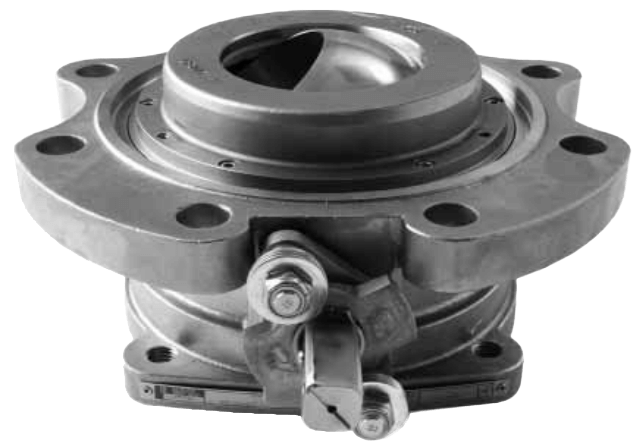

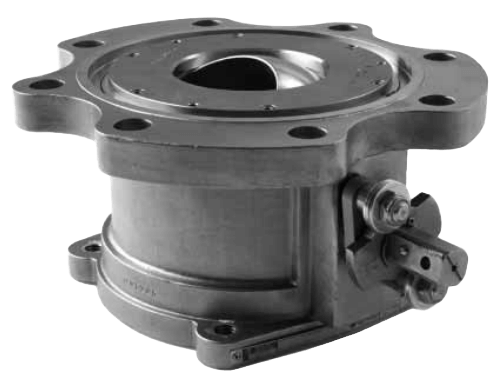

Jamesbury Series 9RET/9REL Full-Port Bottom Outlet Valve
Brand: Metso
The new 4" 9RET and 9REL flanged ball valves are reduced weight bottom-outlet valves and are available in a wide variety of materials to satisfy most tank car applications.
Specifically designed for tank car applications, the valve ensures fast handling of almost all materials including abrasive slurries and viscous fluids.
This ball valve offers the advantages of quick quarter turn operation, long service life, and easy cycling. It is much faster to operate than multi-turn types of valves.
In addition, it is easy to cycle even after being set in one position for an extended period.
The valve is optionally available with a full-steam jacket.
Features- Robust engineering design
- Special tank car interface
- Self relieving seat technology
- Low emissions stem seal technology
- Jacketed option
- High quality
Specifications
Brand
Applications
- Tank Car Applications
Approvals & Certifications
- API 607, 608
Ball Material
- 316 Stainless Steel
Bearing Material
- Stem: PTFE
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (ASTM A216 Typical WCB)
Flange Type
- Raised Face (RF)
Flow Rate
- 2,200 Cv
Handle Assembly Material
- Handle: Carbon Steel
Materials of Construction
- Body Insert: 316 Stainless Steel
- Bonnet Plate, Stop Sleeve, Pin, Pop Rivet, Indicator Stop, Handle Pin: Stainless Steel
- Indicator Stop, Body Insert: Carbon Steel
Media
- Slurries
- Viscous Fluids
- Water
Name Plate, Tag Material
- Stainless Steel
Nut & Bolt Material
- Locking Nut: Stainless Steel
O-Ring Material
- Viton
Port
- Full
Pressure Drop
- psi: 1 (kPa: 6.9, bar: 0.69)
Pressure Rating
- psi: 285 (kPa: 1,965, bar: 19.65)
Ring Material
- Compression, Retaining: Stainless Steel
Screw Material
- Socket Head Cap, Set: Stainless Steel
Seat / Seal Material
- Seat, Body Seal, Stem Seal: PTFE
- Seat: XTREME
- Secondary Stem Seal: Graphite
Stem Material
- 630 Stainless Steel (17-4 PH)
Temperature Range
- -29° to 204° C (-20° to 400° F) - Carbon Steel Body
- -51° to 204° C (-60° to 400° F) - 316 Stainless Steel
UNF/UNC Connection
- 5/8"-11 UNC
Valve Size
- 4" (100 mm)
Valve Type
- Manual
