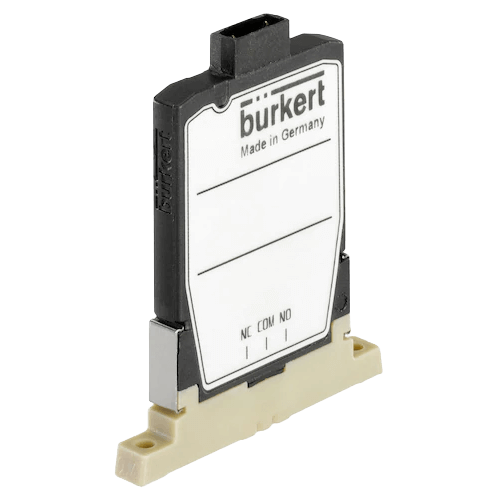

6650 2/2 & 3/2-Way Flipper Solenoid Valve
Brand: Burkert Fluid Control Systems
Type 6650 sets a new standard in medium isolation miniature solenoid valves. The optimized design enables reproducible and precise dosing, good rinsing capability and is suitable for the application of aggressive chemicals owing to the high quality ot the materials used. With the two nominal sizes of 0.4 and 0.8 mm, as well as the selection between 2/2-way and 3/2-way function, it is ideal for applications where the highest fluid performances are required in the smallest space.
Type 6650 opens up new possibilities, owing to the 0.17" (4.5 mm) station width, in particular in connection with dosing in 384-well microtiterplates.
Features- Only 0.17" (4.5 mm) wide
- Medium isolation, for aggressive fluids
- Direct-acting
- Vacuum up to psi: 101.5 (kPa: 700, bar: 7)
- Short response times
Specifications
Ambient Temperature Range
- 10° to 50° C (50° to 122° F)
Applications
- Analytical Applications
Approvals & Certifications
- CE
Differential Pressure
- psi: 0 to 101.5 (kPa: 0 to 700, bar: 0 to 7), Maximum
Duty Cycle
- 100% Duty Cycle, Continuous Operation Only with External Power Reduction
Electrical Connectors
- Plug Burkert Typical 2504
Electrical Contacts
- Normally Closed
Enclosure, Body Material
- PEEK
Environmental Protection
- IP65
Flow Rate
- Water: 0.004 to 0.010 m³/hour (Kv)
Frequency
- Switching: 15 Hz - Continuous with External Power Reduction
- Switching: 80 Hz - for Mechanical Limit Observe, Maximum
Media
- Aggressive Fluids & Gases
Operating Voltages
- 12 V
- 24 V
Orifice Size
- 0.015" to 0.031" (0.4 to 0.8 mm)
Power
- Nominal Holding: 0.7 W
- Nominal: 5.7 W
Pressure Range
- Vacuum - psi: -101.5 to -14.5 (kPa: -700 to -100, bar: -7 to -1)
Process Temperature
- 15° to 50° C (59° to 122° F)
Response Time
- < 5 milliseconds (ISO 12238)
Seat / Seal Material
- Seal: FFKM (Simriz)
Solenoid Type
- 2/2-Way
- 3/2-Way
Tolerance
- Voltage: ± 10%
