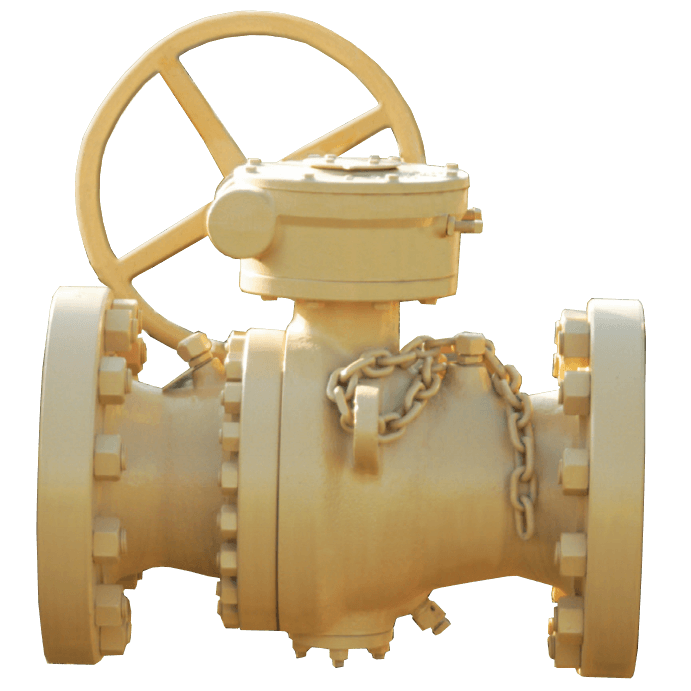

370D6 WKM Dynaseal Trunnion Mounted Ball Valve
Brand: CameronThe Cameron WKM D Series ball valves satisfy a wide range of ANSI and API 6D applications. Engineered for heavy-duty, reduced-maintenance performance and manufactured in a variety of body and seal materials, the WKM D Series valves are commonly selected for many specialized applications such as gas distribution, gas transmission, oilfield production, and industrial applications.
Specifications
Brand
Applications
- Gas Transmission & Distribution
- Industrial Applications
- Oil & Gas Applications
Approvals & Certifications
- API: 6D, 598, 608, 607 6th Ed. Fire-test
- CE
- CRN
- ISO 5211, 15156
- PED
Ball Material
- Carbon Steel - A216 Grade WCC / A105 CS ENP, A352 Gr. LCC / A350 Grade LF2 ENP, NACE
- Stainless Steel - A182 Gr. 316/A351 Grade CF8M, A216 Gr. WCC/A105 CS 3 Mil ENP, NACE
Bearing Material
- Carbon Steel - Thrust Washer
- Filled PTFE - Thrust Washer
Enclosure, Body Material
- Carbon Low Temperature NACE
- Carbon Steel NACE
- Stainless Steel NACE
Flange Size - 10" (DN250)
- 10" (DN250) - 150# (ASME)
- 10" (DN250) - 1500# (ASME)
- 10" (DN250) - 2500# (ASME)
- 10" (DN250) - 300# (ASME)
- 10" (DN250) - 600# (ASME)
- 10" (DN250) - 900# (ASME)
Flange Size - 12" (DN300)
- 12" (DN300) - 150# (ASME)
- 12" (DN300) - 1500# (ASME)
- 12" (DN300) - 2500# (ASME)
- 12" (DN300) - 300# (ASME)
- 12" (DN300) - 600# (ASME)
- 12" (DN300) - 900# (ASME)
Flange Size - 14" (DN350)
- 14" (DN350) - 150# (ASME)
- 14" (DN350) - 1500# (ASME)
- 14" (DN350) - 2500# (ASME)
- 14" (DN350) - 300# (ASME)
- 14" (DN350) - 600# (ASME)
- 14" (DN350) - 900# (ASME)
Flange Size - 16" (DN400)
- 16" (DN400) - 150# (ASME)
- 16" (DN400) - 1500# (ASME)
- 16" (DN400) - 2500# (ASME)
- 16" (DN400) - 300# (ASME)
- 16" (DN400) - 600# (ASME)
- 16" (DN400) - 900# (ASME)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME)
- 2" (DN50) - 1500# (ASME)
- 2" (DN50) - 2500# (ASME)
- 2" (DN50) - 300# (ASME)
- 2" (DN50) - 600# (ASME)
- 2" (DN50) - 900# (ASME)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME)
- 3" (DN80) - 1500# (ASME)
- 3" (DN80) - 2500# (ASME)
- 3" (DN80) - 300# (ASME)
- 3" (DN80) - 600# (ASME)
- 3" (DN80) - 900# (ASME)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME)
- 4" (DN100) - 1500# (ASME)
- 4" (DN100) - 2500# (ASME)
- 4" (DN100) - 300# (ASME)
- 4" (DN100) - 600# (ASME)
- 4" (DN100) - 900# (ASME)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME)
- 6" (DN150) - 1500# (ASME)
- 6" (DN150) - 2500# (ASME)
- 6" (DN150) - 300# (ASME)
- 6" (DN150) - 600# (ASME)
- 6" (DN150) - 900# (ASME)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME)
- 8" (DN200) - 1500# (ASME)
- 8" (DN200) - 2500# (ASME)
- 8" (DN200) - 300# (ASME)
- 8" (DN200) - 600# (ASME)
- 8" (DN200) - 900# (ASME)
NACE & NIST
- NACE MR-0175
O-Ring Material
- FKM - Stem Seal, Trunnion, Seat O-Rings
- FKM GLT - Stem Seal, Trunnion, Seat O-Rings
- HNBR - Stem Seal, Trunnion, Seat O-Rings
- JW HNBR - Stem Seal, Trunnion, Seat O-Rings
Pressure Range
- psi: 0 to 6,170 (kPa: 0 to 42,450, bar: 0 to 425.4)
Ring Material
- Carbon Steel (A 216 Grade WCC / A105 CS ENP, A352 Grade LCC / A350 Grade LF2 ENP, NACE)
- Nylon - Back-up Rings
- PEEK - Back-up Rings
- Stainless Steel (A182 Grade 316/A351 Gr. CF8M, A216 Grade WCC/A105 CS 3 Mil ENP)
Rotation
- Bi-Directional
Seat / Seal Material
- Seal: FKM
- Seal: FKM GLT
- Seal: HNBR
- Seat: Devlon
- Seat: Filled PTFE
- Seat: Nylon 6
- Seat: PEEK
Spring Material
- Carbon Steel (B637 N07500)
- Stainless Steel (B637 N07500)
Stem Material
- 316 Stainless Steel - Stem Drive Pin
- Alloy Steel - Stem Drive Pin
- Carbon Steel (A105 CS ENP, A350 Grade LF2 ENP, NACE) - Stem/Trunnion
- Filled PTFE
- Inconel®
- Stainless Steel (A182 Grade, A105 CS 3 Mil ENP, NACE) - Stem/Trunnion
Temperature Range
- -46° to 177° C (-50° to 350° F)
Torque
- 147 to 17,382 In/Lbs
- 256 to 70,917 In/Lbs - Break Torque
Trim Material
- 3 Mil ENP Carbon Steel NACE
- Carbon Steel NACE
- Low-Temperature Carbon Steel NACE
- Stainless Steel NACE
