Emerson Appleton Cable Connector, TC
Images are representations only.

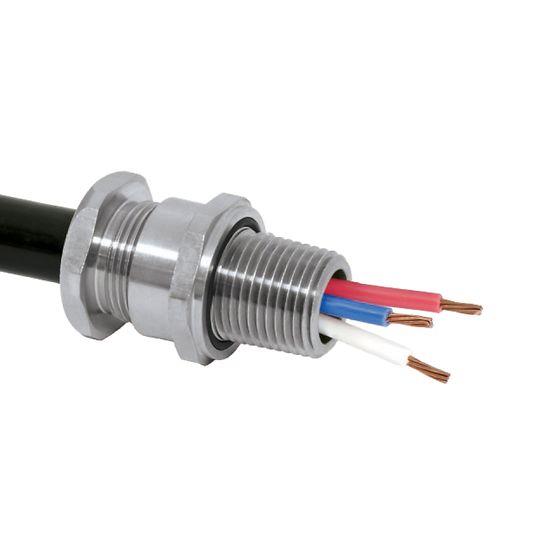

Appleton™ TC Cable Connectors Tray Cable

Brand: Appleton
Request Information

Appleton™ TC Cable Connectors are suitable for use with type (TC) tray cable and flex cord in ordinary, wet and hazardous locations including Class I, Division 2 (where permitted by code), Class I, Zone 1 AEx e and Ex e (where permitted by code). They offer ingress protection to NEMA 4X and IP66/67/68.
Features
  • Guarantees code compliance by satisfying the requirements of NEC article 501.10(B)(1).

  • The unique use of the seal insert, enables each gland size to terminate the widest range available in a single hub size.

  • Continuous operating temperature: -60 °C to 110 °C (-76 °F to 230 °F).

  • Jacket sealing technique: compensating displacement seal.

  • Sealing area(s): cable outer jacket.

  • Aluminum 1/2", 3/4" and 1" connectors are supplied with zinc plated steel locknut.

    • Specifications

    Brand

    Approvals & Certifications

    • Ex II 2 GD, Ex D IIC Gb, Ex E IIC Gb, Ex Ta IIIC Da

    Cable Gland Accessories

    • Adaptor/reducer, Earth Tag

    Connector Material

    • Copperfree (4/10 of 1% Max) Aluminum, Stainless Steel or Electroless Nickel-Plated Brass in NPT (Standard) & Metric Thread Forms

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups E, F, G, Class III, Division 2, NEMA Typical 4X
