Model A2X Explosion/Flame Proof Pressure

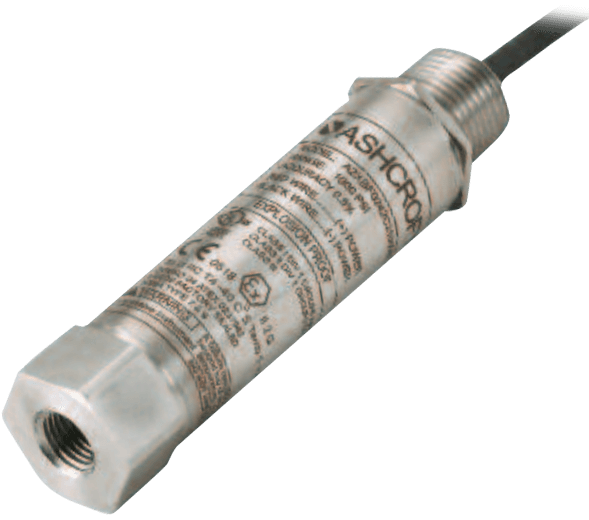

Brand: Ashcroft Inc.The Ashcroft A2X Pressure Transmitter is ideal for a broad spectrum of pressure sensing requirements requiring approvals for explosion/flame proof.
The Ashcroft A2X is designed and manufactured to provide the user with accurate, reliable, and stable output data.
This is accomplished through the use of an on board microprocessor, that is programmed during a unique digital compensation process, to provide extremely linear and precise performance over the entire specified pressure and temperature range.
Features- cUL and ATEX listed
- Choice of 0.25, 0.50 or 1.0% accuracy
- Pressure ranges from 5 psi through 10,000 psi
- CE mark
- 316L stainless steel wetted materials, 17-4 PH optional
- 304 stainless steel case
- Six output signals to choose from
- Optional absolute pressure ranges available
Specifications
Brand
Accuracy
- ± 0.25% of Span
- ± 0.5% of Span
- ± 1% of Span
Applications
- Natural Gas Compressors
- Oil Field Equipment
- Transfer Control
- Upstream Oil & Gas Production
Approvals & Certifications
- CE
- CSA Class I, Division 1, Class I, Division 2, Non-Incendive
- Ex
- Flameproof ATEX: Specify 2X
- FM Class I, Division 1, Class I, Division 2, Non-Incendive
- UL (C,US)
Burst Pressure
- Minimum 2 times Full Scale of psi: 0 to 300 (kPa: 0 to 2,068, bar: 0 to 20.6)
Compensated Temperature
- -20° to 85° C (-4° to 185° F)
Current
- Supply Current: < 5 mA for Voltage Outputs
Diaphragm Material
- 316L Stainless Steel
- 630 Stainless Steel
Electrical Connectors
- 1/2" NPT Male Conduit Connection
- Flying Leads
- Shielded Cable
Electrical Protection
- Reverse Polarity
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- Explosion-proof
- Flameproof
- Ingress Protection: IP65
- Ingress Protection: NEMA 7
- Ingress Protection: NEMA 9
Humidity
- 0 to 100% Relative Humidity
- 0 to 95% Relative Humidity, Non-Condensing
Insulation Resistance
- 100 MegaOhms at 30 Vdc
NACE & NIST
- NIST
NPT Connection
- 1/2" NPT Female
- 1/2" NPT Male
- 1/4" NPT Female
- 1/4" NPT Male
- 1/8" NPT Male
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0-10 Vdc, 3-Wire
- 0-5 Vdc, 3-Wire
- 1-5 Vdc, 3-Wire
- 1-6 Vdc, 3-Wire
- 4-20 mA, 2-Wire
Position Effect
- ± 0.02% Typical
Pressure Cycles
- Durability: > 10 Million Cycles
Pressure Range
- bar: 0.1 to 689.5
- kPa: 10.3 to 68,950
- psi: 1.5 to 10,000
Pressure Type
- Absolute
- Compound Pressure
- Gauge
- Vacuum
Process Temperature
- -40° to 125° C (-40° to 257° F)
Proof Pressure
- 1.2 times Full Scale
- 1.5 times Full Scale
Response Time
- < 2 milliseconds
SAE Connection
- 7/16"-20 SAE Male
Sensor, Probe Material
- 630 Stainless Steel
Shock
- 100 G, 11 milliseconds
Stability
- ≤ ± 0.25% of Span/Year
Storage Temperature
- -40° to 125° C (-40° to 257° F)
Supply Voltage
- Maximum
- Minimum 10-14 Vdc
Temperature Effect
- ± 1% of Span for ± 0.25% Accuracy Class
- ± 2% of Span for 0.5% & 1% Accuracy Classes
VCR / VCO Connection
- 1/4" VCR
Vibration Effect
- Random: 10 G RMS, 20 to 2,000 Hz
- Sweep: 5 G Peak, 50 to 2,000 Hz
Wetted Materials
- 316L Stainless Steel
