Emerson Appleton Industrial Location Photocontrol, PC Series
Images are representations only.

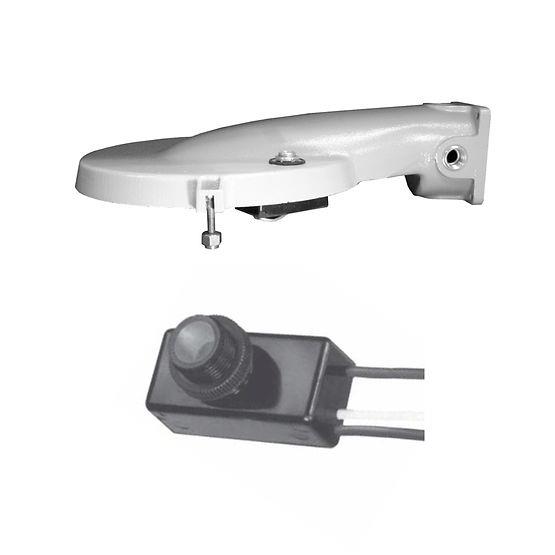

Appleton™ PC Series Industrial Location Photocontrol

Brand: Appleton
Request Information
Favorite

PC Series Industrial Location Photocontrol provides automatic dusk-to-dawn lighting control in non-hazardous locations It is a durable polycarbonate housing with a clear UV stabilized window ultrasonically welded in place. It is ideal for remote mounting in an FS box.
Features
  • Typical applications include walkways, security areas and any other outdoor lighting application.

  • For Use in Ordinary (Unclassified) Locations.

  • For use with all Mercmaster III and Mercmaster LED luminaires.

  • Solid state design for performance and reliability. Available for 120, 208, 240, or 277 volts. 1000 V.A.

  • Minimum time delay: 15 seconds to eliminate nuisance tripping.

  • Turns on between 1 to 4 Footcandles.

  • Turn off between 3 to 12 Footcandles.

  • 5,000 hours of operation, minimum at rated load.

  • Provided with (3) 18AWG stranded leads 152.4 mm (6.00 in) length.

  • Will fit through standard 1/2" knockout.

  • Supplied with locknut and gasket.

    • Specifications

    Brand

    NEC/CEC Certifications & Compliances

    • Rated for Ordinary (Unclassified) Locations

    Standard Materials

    • UV Resistant Polycarbonate Housing
