Cameron Metal-Seated Ball Valve, 3300
Images are representations only.

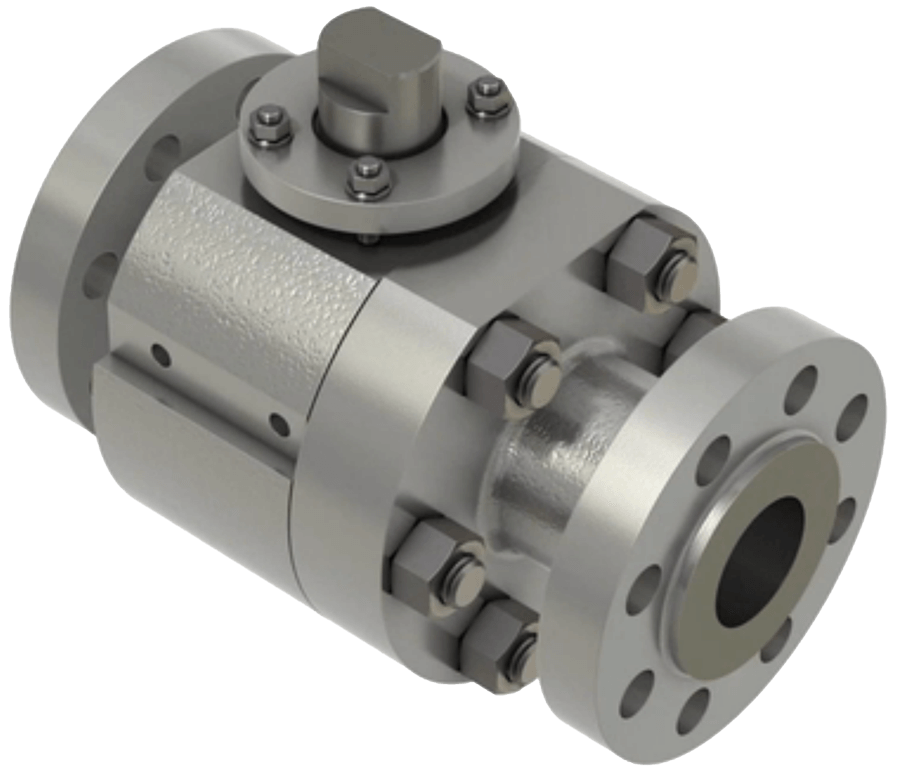

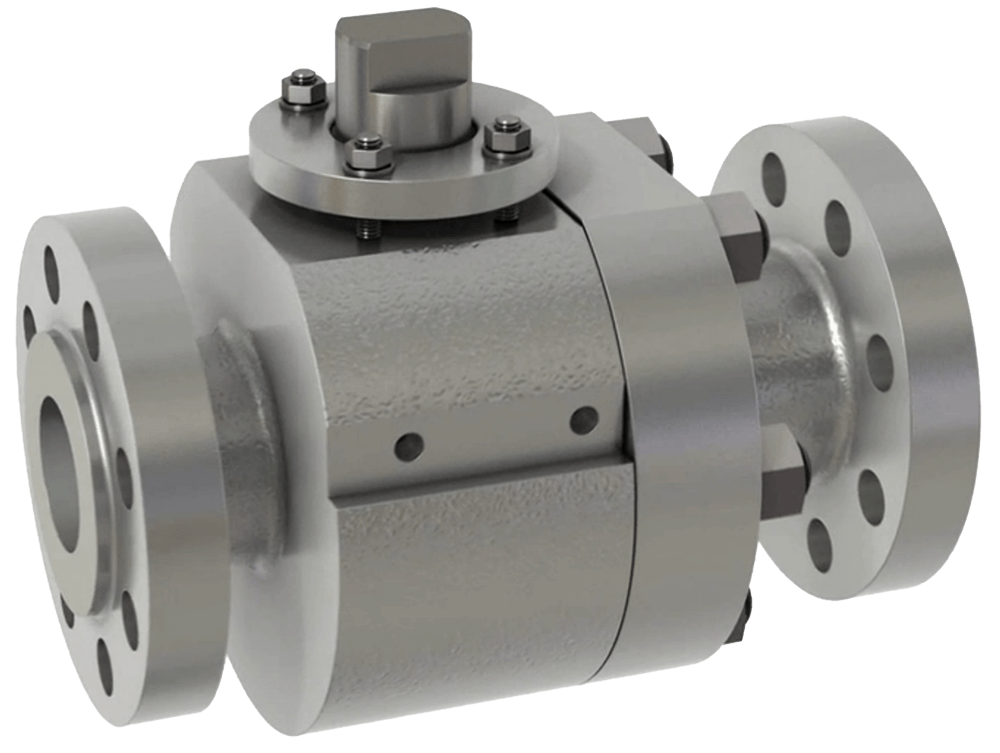

3300 Metal-Seated Ball Valve

Brand: Cameron

Cameron Metal-Seated Ball Valve, 3300
All of the individual design elements incorporated into Cameron’s TBV Series 3300 valves have been field proven in the precious metals (mining) industry-one of the most demanding applications for any valve. The valve is preferable by design, overcoming issues with historically unsuccessful design elements by incorporating field proven evolutionary designs and higher quality components.

Specifications

Brand

Applications

  • Mining Autoclave: Oxygen Injection, Autoclave Vent, Autoclave Vent Isolation, Autoclave Slurry (Discharge), Autoclave Raffinate Feed, Pump Isolation, Inlet Valves, Acid Injection & Steam System
  • Pulp & Paper: White & Black Liquid Slurries
  • Refining & Petrochemical: Fly Ash, Oil Sands, Coal Slurries, Catalyst Slurries & Hydrocarbons

Approvals & Certifications

  • CE

Approvals & Certifications

  • Hydrostatic Pressure Test
  • TUV (Technischer Uberwachungsverein)
  • Valve Torque Testing (Break Torque at Full Differential Pressure & Free Running Torque)

Ball Material

  • 316 Stainless Steel
  • Carbon Steel
  • Duplex UNS32750
  • Hastelloy® B
  • Hastelloy® C
  • Nickel 200
  • Titanium Grade 2, 7, 12, 28

Bushing Material

  • PEEK (Lower Stem Bushing)

Enclosure Finish

  • Tantalum Bond Coating
  • Thermal Spray Coating
  • Vacuum Plasma-Sprayed Titanium Dioxide Coating - for the Titanium Ball & Seats
  • Wear Resistant Coating - to the Ball & Seats

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Duplex UNS32750
  • Hastelloy® B
  • Hastelloy® C
  • Nickel 200
  • Titanium Grade 2, 7, 12, 28

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150# (ASME)
  • 1-1/2" (DN40) - 300# (ASME)
  • 1-1/2" (DN40) - 600# (ASME)

Flange Size - 1-1/4" (DN32)

  • 1-1/4" (DN32) - 150# (ASME)
  • 1-1/4" (DN32) - 300# (ASME)
  • 1-1/4" (DN32) - 600# (ASME)

Flange Size - 1" (DN25)

  • 1" (DN25) - 150# (ASME)
  • 1" (DN25) - 300# (ASME)
  • 1" (DN25) - 600# (ASME)

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (ASME)
  • 10" (DN250) - 300# (ASME)
  • 10" (DN250) - 600# (ASME)

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (ASME)
  • 12" (DN300) - 300# (ASME)
  • 12" (DN300) - 600# (ASME)

Flange Size - 14" (DN350)

  • 14" (DN350) - 150# (ASME)
  • 14" (DN350) - 300# (ASME)
  • 14" (DN350) - 600# (ASME)

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150# (ASME)
  • 2-1/2" (DN65) - 300# (ASME)
  • 2-1/2" (DN65) - 600# (ASME)

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (ASME)
  • 2" (DN50) - 300# (ASME)
  • 2" (DN50) - 600# (ASME)

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (ASME)
  • 3" (DN80) - 300# (ASME)
  • 3" (DN80) - 600# (ASME)

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (ASME)
  • 4" (DN100) - 300# (ASME)
  • 4" (DN100) - 600# (ASME)

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (ASME)
  • 6" (DN150) - 300# (ASME)
  • 6" (DN150) - 600# (ASME)

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (ASME)
  • 8" (DN200) - 300# (ASME)
  • 8" (DN200) - 600# (ASME)

Materials of Construction

  • Stainless Steel
  • Tungsten Carbide - for Carbon & Stainless Steel Valves

Nut & Bolt Material

  • Alloy Steel ASTM A193 B7M, B6, B7, B8, B8M

Port

  • Full

Rotation

  • Bi-Directional

Seat / Seal Material

  • Seal: Graphite Spiral Wound Gasket to Match Body Material
  • Seat: Metal with VPS or HVOF Coatings

Stem Material

  • Stem & End Material: 316 Stainless Steel
  • Stem & End Material: Carbon Steel
  • Stem & End Material: Duplex UNS32750
  • Stem & End Material: Hastelloy® B
  • Stem & End Material: Hastelloy® C
  • Stem & End Material: Nickel 200
  • Stem & End Material: Titanium Grade 2, 7, 12, 28

Valve Type

  • Manual
