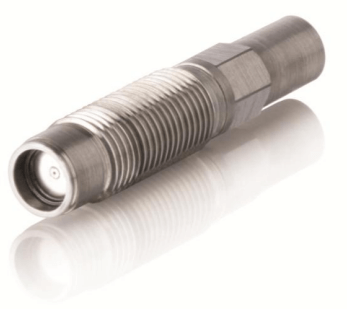

BD Sensors Piezoelectric Pressure Sensor, DAC 106 L
Images are representations only.

DAC 106 L Piezoelectric Pressure Sensor

Brand: BD Sensors
Request Information
Favorite

The DAC106 L has a very slim M3 cable connector and enables very precise measurements with an M5-size sensor. Its good performance is achieved by means of thermally optimized piezoelectric crystal elements and the special Double Shell design. Due to the construction of the sensor, the piezoelectric elements can be decoupled from the negative influences of thermal expansion and other mechanical stresses.
Features
  • Compact Construction
  • High Pressure Range
  • High temperature resistance 400° C (752° F)
  • High natural frequency
  • Constant sensitivity across the entire service life

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Enclosure, Body Material

    • Stainless Steel

    Metric Connection

    • Thread Diameter (Front Sealing): M5 x 0.5

    Pressure Range

    • bar: 0 to 500
    • kPa: 0 to 50,000
    • psi: 0 to 7,252
