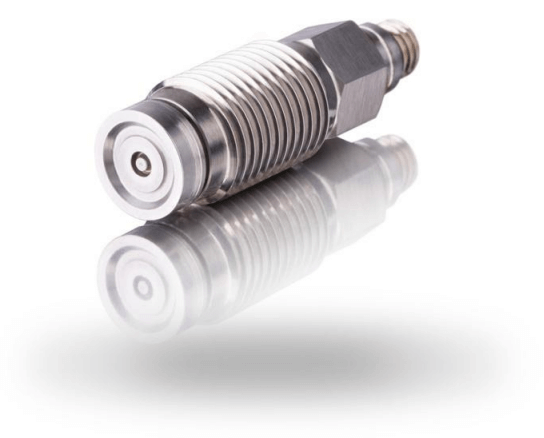

BD Sensors Piezoelectric Pressure Sensor, DAC 180
Images are representations only.

DAC 180 Piezoelectric Pressure Sensor

Brand: BD Sensors
Request Information
Favorite

The piezoelectric pressure sensor was developed for detecting dynamic pressure changes psi: 0 to 116,024 (kPa: 0 to 800,000, bar: 0 to 8,000) in hydraulic systems. The unique GaPO₄ sensor element allows a sensitivity of 2.3 pC/bar. It is therefore ideal for resolving small pressure fluctuations across the entire pressure range. The front-sealing sensor in conjunction with the compression fitting is not influenced by either installation or installation position.
Features
  • High sensitivity
  • Suitable for dynamic pressure changes psi: 0 to 116,024 (kPa: 0 to 800,000, bar: 0 to 8,000)
  • Long service life and excellent long-term stability

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Pressure Range

    • bar: 0 to 8,000
    • kPa: 0 to 800,000
    • psi: 0 to 116,024

    UNF/UNC Connection

    • 10-32 UNF Male

    Documentation

    Data Sheets

    show more
