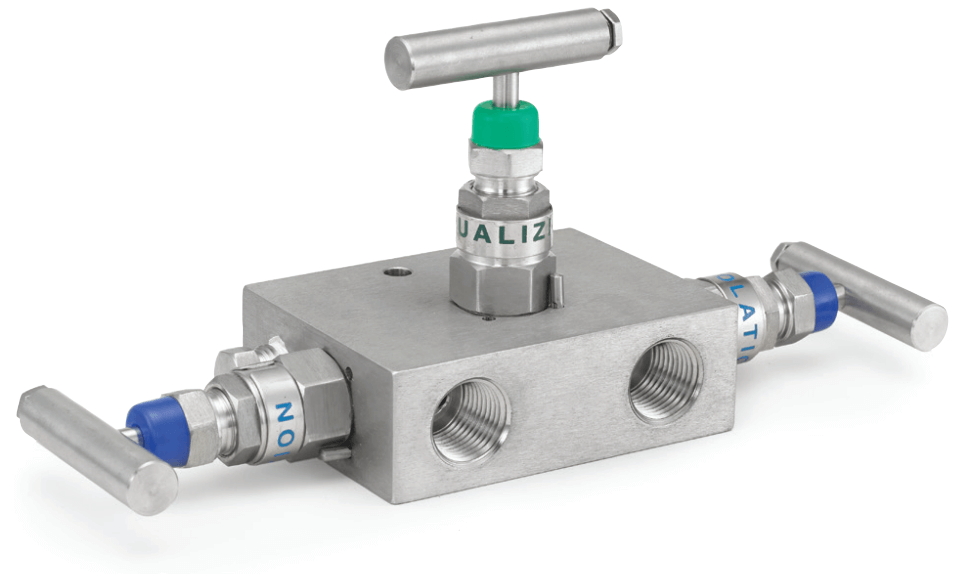

V01 Series 3 & 5-Valve Remote Mount Manifold
Part Number: V01 SERIES 3 & 5 VALVE Brand: Ashcroft Inc.Price
Request a Quote
Stock
Out of Stock
The Ashcroft V01 3 & 5 valve manifold is designed to isolate and equalize differential pressure instruments during process shut downs and maintenance.
Features- 3-valve manifolds Isolate each port and equalize pressure for instrument maintenance
- 5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance
- Externally adjustable gland
- Reinforced gland body protection
- Blowout protection
Specifications
Brand
Applications
- Cement Plants
- Chemical Industry
- Oil & Gas Applications
- Power Plants
- Seawater Desalination Plants
- Steel Mills
- Waste Incineration Plants
Approvals & Certifications
- Compliance with Power Piping ASME B31.1
- Hydrostatic Pressure Test
Cap Material
- Dust Cap: PVC
Enclosure, Body Material
- 316L Stainless Steel
Handle Assembly Material
- 304 Stainless Steel
Instrument Connection
- 1/2" NPT Female
Materials of Construction
- Gland Retainer, Lock Pin: 304 Stainless Steel
Mounting
- Remote Mounting
Name Plate, Tag Material
- Stainless Steel
NPT Inlet
- 1/2" NPT Female
NPT Outlet
- 1/2" NPT Female
Nut & Bolt Material
- Check Nut: 304 Stainless Steel
Packing Material
- PTFE
Plug Material
- Plug 1/4" NPT: 316L Stainless Steel
Pressure Rating
- Maximum
Seat / Seal Material
- Gland Seal: PTFE
Special Cleaning & Packaging
- Cleaned for Oxygen Service
Spindle Material
- 316L Stainless Steel
Temperature Range
- 38° C (100° F) Maximum
Valves
- 3
- 5
Wetted Materials
- Needle Tip & Washer: 316L Stainless Steel
