Cameron Swing Check Valve, WHEATLEY 822

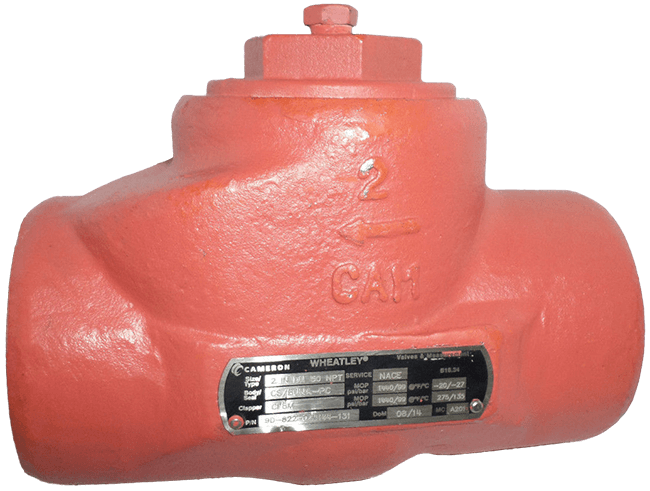

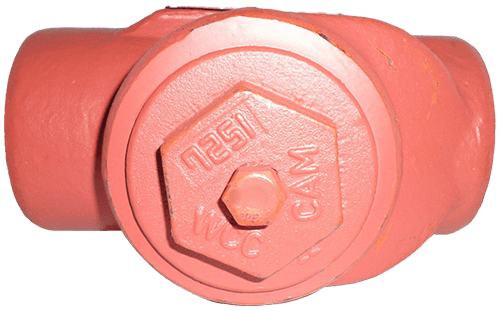

Images are representations only.

WHEATLEY 822 Swing Check Valve

Brand: Cameron
Request Information
Favorite

Cameron Swing Check Valve, WHEATLEY 822
The Cameron WHEATLEY Series 822 check valve is designed to safely prevent backflow of liquid or gas in pipeline applications. Standard Features:
  • Designed in accordance with ASME B16.34 (WCC, LCC and CF8M only)
  • Materials of construction conform to NACE MR0175/ISO 15156
  • Solid 316 stainless steel clapper and hanger reduce the need for separate pins, bushings and rollers
  • Compact valve geometry reduces weight and space
  • Bevelled, self-aligning clapper and seat design incorporates a molded seal in the clapper for a bubble-tight seal and metal-to-metal secondary seal
  • Peroxide-cured Buna-N (FKM and HNBR optional) seals
  • Generous wrench area on body and hex-head threaded cover for easier installation and maintenance
  • Full opening
  • Suitable for horizontal or vertical flow up
  • Below-the-threads cover seal isolates the cover threads from line media
  • Metal nameplate

View Details

Specifications

Brand

Approvals & Certifications

  • ISO 15156

Cover Material

  • Aluminum Bronze (ASTM B148 Alloy 955)
  • Carbon Steel (ASTM A216 Grade WCC or LCC)
  • Ductile Iron (ASTM A216 Grade WCC)
  • Stainless Steel (ASTM A351 Grade CF8M)

Enclosure, Body Material

  • Aluminum Bronze (ASTM B148 Alloy 955)
  • Carbon Steel (ASTM A216 Grade WCC or LCC)
  • Ductile Iron (ASTM A395)
  • Stainless Steel (ASTM A351 Grade CF8M)

Materials of Construction

  • Stainless Steel (ASTM A351 GRADE CF8M) - Clapper, Arm, Pin & Hanger Material

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1-1/2" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 4" NPT Female

Operating Pressure

  • psi: 275 to 3,600 (kPa: 1,896 to 24,820, bar: 18.96 to 248.2) - for Carbon Steel & Aluminum Bronze
  • psi: 300 to 2,500 (kPa: 2,068 to 17,240, bar: 20.68 to 172.4) - for Ductile Iron

Plug Material

  • 304 Stainless Steel - ASTM A276
  • Aluminum Bronze (ASTM A473 Typical 316)
  • Carbon Steel (ASTM A105 / A473-316)
  • Ductile Iron (ASTM A105)

Seat / Seal Material

  • 90-Durometer Peroxide-Cured Buna-N - Cover, Clapper Seal
  • FKM - Cover, Clapper Seal
  • HNBR - Cover, Clapper Seal

Welded Connection

  • 1" Socket Weld End
  • 1/2" Socket Weld End
  • 1-1/2" Socket Weld End
  • 2" Socket Weld End
  • 2-1/2" Socket Weld End
  • 3" Socket Weld End
  • 3/4" Socket Weld End
  • 4" Socket Weld End
