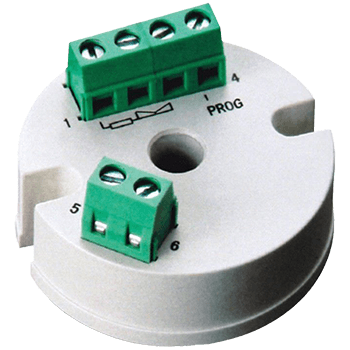

Style UNI5-I Temperature Transmitter
Brand: United Electric Controls Ltd.- Transmitter Type:
- Isolated transmitter with single 4-20 mA output for terminal head mounting
- Input:
- J, K, E, T, R, S, B type thermocouple
- Pt100, Pt1000, Ni100, Ni1000 RTD
Specifications
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Enclosure, Body Material
- ABS
- Polycarbonate
Isolation
- I/O: 1,500 Vac Galvanic
Linearity
- RTD: ± 0.1% of Span
- Thermocouple: ± 0.2% of Span
Mounting
- Terminal Head Mount
Output
- 20-4 mA
- 4-20 mA
Resistance
- Sensor Lead Resistance for RTD: 25 ohms, Maximum
- Sensor Lead Resistance for Thermocouple: 500 ohms, Maximum
RTD Type
- 1,000-Ohm Nickel RTD
- 1,000-Ohm Platinum RTD
- 100-Ohm Nickel RTD
- 100-Ohm Platinum RTD
Sensor, Probe Connection
- 3-Wire
- 4-Wire
Sensor, Probe Type
- B Thermocouple
- E Thermocouple
- J Thermocouple
- K Thermocouple
- RTD
- R Thermocouple
- S Thermocouple
- T Thermocouple
Span - Minimum
- RTD: 10° C (50° F)
- Thermocouple: 2 mV
Stability
- 0.01° C / °C
Supply Voltage
- 6.5-36 Vdc, Polarity Protected
Temperature Range
- Sensor: -200° to 1,820° C (-328° to 3,308° F)
