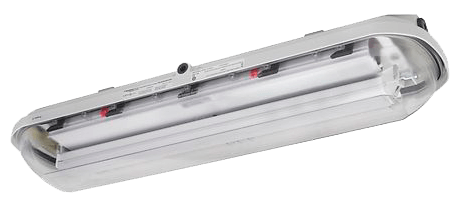

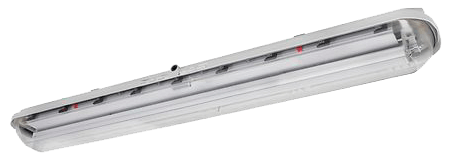

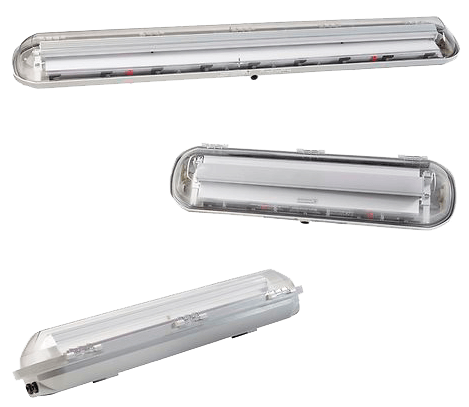

Appleton™ ATX™ FELED Series Nonmetallic LED Luminaires
Brand: Appleton
ATX™ FELED Series Nonmetallic LED Luminaires are easy to install, easy to maintain non-metallic linear fixtures. It is available in either a standard or an emergency battery back-up version. The FELED is ideal for use in Zone 1 and Zone 21 locations and provides 2,000 to 8,000 lumens to fit a wide variety of applications. They can easily retrofit existing fluorescent fixtures as they maintain the same look and feel. The FELED utilizes the same footprint and mounting accessories; saving time, labor and money.
Features- Typical applications include oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, warehouses, underground tunnels and general manufacturing facilities
- Can be horizontally or vertically mounted. Positive safety switch disconnects power to LED's and driver to allow maintenance in hazardous locations
- High impact resistance housing (20 Joules - IK10) from -30 °C to +55 °C (-22 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore environments
- Contemporary, low profile, lightweight design is suitable for tight spaces. It features a hinged cover with captive screws, and standard screw-type terminal block (accepts 1 to 6 mm² wire) for easy installation and maintenance. M20 plug or M25 plug
- Full range of lumen outputs, with light distribution equivalent to Appleton's FE Series fluorescent luminaires
- Easy to retrofit in same mounting footprint as Appleton's FE Series nonmetallic fluorescent luminaires
- Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens. Latch assembly and elastomer gasket seals against water and dust ingress, IP66
- Easily accessed for maintenance using Allen key or straight blade screw driver via the central opening which features a unique patented release system to prevent damage
- Universal, high efficiency, drivers cover voltage requirements for 120-277 Vac, 170-300 Vdc; 50/60 Hz +/- 10%. High power factor electronic driver (>0.95). Standard 6KV surge suppression
- Industry-leading thermal management for safe, reliable operation over wide temperature range
- Available in 3 hour emergency version, including built-in monthly self- test. Test results through multi-colored LED. Ex e battery with plug-in connector
- Field replaceable LED driver, lens and diffuser
Specifications
Brand
Ambient Temperature Range
- -30° C up to +50° C / +55° C
Approvals & Certifications
- Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10
Battery Back-Up Option
- 3 Hour Emergency Version with 6 V - 7 Ah for 5K Version Only
Lumen Breakdown
- 2K is 2200 or 2400 Lumens, 4K is 4000 or 4300 Lumens, 5K is 4025 or 4600 Lumens, 8K is 7900 or 8500 Lumens
Standard Materials & Finishes
- Fiberglass Reinforced Polyester (FRP) Housing with Polycarbonate Lens, Highly Reflective White Powder Coated Aluminum Internal Reflector & Elastomer Gasket
