United Electric Metal Protection Tube, Style MT4
Images are representations only.

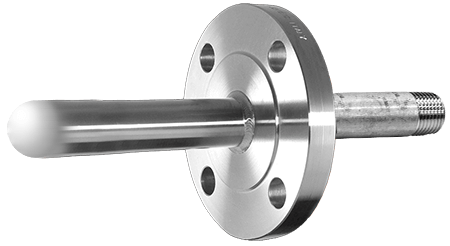

Style MT4 Metal Protection Tube

Brand: United Electric Controls Ltd.
Request Information
Favorite

  • Style:
    • Metal protection tube, threaded, with flange
  • Pipe Size / Instrument Connection:
    • 1/2" pipe (0.840" diameter) / 1/2" NPT
    • 3/4" pipe (1.050" diameter) / 3/4" NPT
    • 1" pipe (1.315" diameter) / 1" NPT
  • Pipe Schedule:
    • Schedule 40
    • Schedule 80
    • Schedule 160

View Details

Specifications

Brand

Enclosure, Body Material

  • 304 Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 321 Stainless Steel
  • Alloy 20 or Incoloy®
  • Inconel® 600
  • Monel® 400

Flange Material

  • 304 Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 321 Stainless Steel
  • Alloy 20 or Incoloy®
  • Inconel® 600
  • Monel® 400

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#
  • 1-1/2" (DN40) - 1500#
  • 1-1/2" (DN40) - 300#
  • 1-1/2" (DN40) - 600#
  • 1-1/2" (DN40) - 900#

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#
  • 1" (DN25) - 1500#
  • 1" (DN25) - 300#
  • 1" (DN25) - 600#
  • 1" (DN25) - 900#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 1500#
  • 2" (DN50) - 300#
  • 2" (DN50) - 600#
  • 2" (DN50) - 900#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 1500#
  • 3" (DN80) - 300#
  • 3" (DN80) - 600#
  • 3" (DN80) - 900#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 1500#
  • 4" (DN100) - 300#
  • 4" (DN100) - 600#
  • 4" (DN100) - 900#

Flange Type

  • Flat Face (FF)
  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Instrument Connection

  • 1" NPT Male
  • 1/2" NPT Male
  • 3/4" NPT Male

Mounting

  • Flange Mount

Pipe Schedule

  • Schedule 160
  • Schedule 40
  • Schedule 80

Pipe Size

  • 1/2" to 1"

Style

  • Metal Protection Tube, Threaded, with Flange
