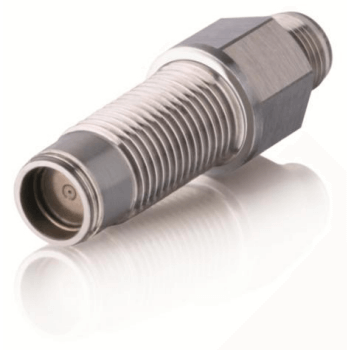

BD Sensors Piezoelectric Pressure Sensor, DAC 103
Images are representations only.

DAC 103 Piezoelectric Pressure Sensor

Brand: BD Sensors
Request Information
Favorite

The sensor was developed for dynamic and quasistatic pressure detection psi: 0 to 3,626 (kPa: 0 to 25,000, bar: 0 to 250) Due to its active acceleration compensation, the sensor returns an exact signal even on heavily vibrating systems. Thanks to its size (M5x0.5 thread) and its temperature resistance 0° to 400° C (0° to 752° F), the sensor is suitable for a broad range of applications.
Features
  • Active acceleration compensation
  • High temperature resistance 400° C (752° F)
  • High natural frequency
  • Constant sensitivity across the entire service life

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Enclosure, Body Material

    • Stainless Steel

    Metric Connection

    • M5 x 0.5

    Pressure Range

    • bar: 0 to 250
    • kPa: 0 to 25,000
    • psi: 0 to 3,626
