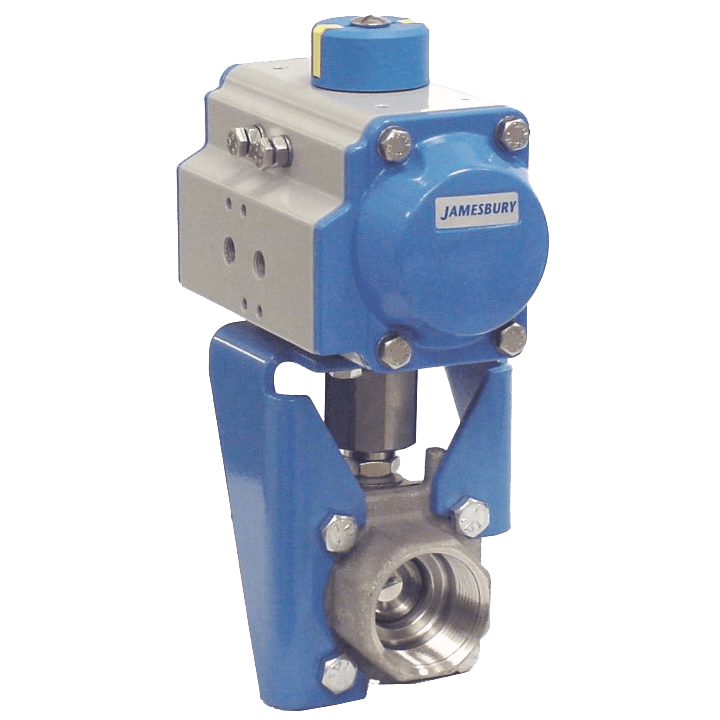

Jamesbury Series 2000 Standard Port Ball Valve
Brand: MetsoClincher Series 2000 ball valves are rugged high performance threaded-end ball valves designed to handle an extremely wide variety of liquids, gases, and slurries.
These compact valves have a two-piece body construction and are available with temperature ratings from -51° to 260° C (-60° to 500° F), depending on materials and pressure combinations.
The body style 21 is manufactured in brass.
The Fire-Tite Series 23 is available in carbon steel or stainless steel.
Clincher Series 2000 Style 21 valves are available specially prepared for critical services such as oxygen and high-vacuum.
Also available are valves conforming to UL approved configurations.
Features- Robust engineering design
- Self relieving seat technology
- High quality
Specifications
Brand
Actuator Type
- Double-Acting
- Electric
- Pneumatic
- Spring Diaphragm
Approvals & Certifications
- UL
Approvals & Certifications
- Hydrostatic Pressure Test
Ball Material
- 316 Stainless Steel
- Brass - Style 21-11 Model
Cap Material
- Body: 316 Stainless Steel - ASTM A351 CF8M, 1.4408 - Style 23-36 Model
- Body: Alloy 377 - Style 21-11 Model
- Body: Brass (ASTM B283) - Style 21-11 Model
- Body: Carbon Steel (ASTM A216 Grade WCB) - Style 23-22 Model
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408 - Style 23-36 Model
- Alloy 377 - Style 21-11 Model
- Brass (ASTM B283) - Style 21-11 Model
- Carbon Steel (ASTM A216 Grade WCB) - Style 23-22 Model
Fill Material
- PTFE
Flow Rate
- 9.4 to 115 Cv
Handle Assembly Material
- Handle: Carbon Steel
- Handle: Stainless Steel - Style 21-11 Model
Materials of Construction
- Shakeproof Washer, Lock Washer: Carbon Steel
- Shakeproof Washer: Stainless Steel
- Spring Washer: Zinc-Plated Carbon Steel - Furnished Only on 1" (DN 25) & Larger Valves with Brass or 316 Stainless Steel Ball
Media
- Gas
- Liquids
- Slurries
- Water
Nut & Bolt Material
- Body Bolt, Hex Nut: 300 Series Stainless Steel - Style 21-11 Model
- Body Bolt, Hex Nut: Alloy Steel - Fire-Tite Model
- Body Bolt: Steel (ASTM A449) - Style 21-11 Model
- Stem Nut, Hex Nut: Carbon Steel - Style 21-11 Model
- Stem Nut: Stainless Steel - Fire-Tite Model
Operating Pressure
- psi: 400 (kPa: 2,800, bar: 28) - Carbon Steel, 316 Stainless Body (300 Series Stainless Steel Body Bolt), Brass Body
- psi: 600 (kPa: 4,100, bar: 41) - Brass Body
- psi: 800 (kPa: 5,500, bar: 55) - Carbon Steel, 316 Stainless Body (ASTM A449, A193 Grade B7 Body Bolt)
Pressure Rating
- psi: 200 (kPa: 1,379, bar: 13.79) - M Seated Valve
- psi: 250 (kPa: 1,724, bar: 17.24) - Saturated Steam
Pressure Type
- Vacuum
Proof Pressure
- Test - psi: 1,200 (kPa: 8,300, bar: 83) - Carbon Steel, 316 Stainless Body (ASTM A449, A193 Grade B7 Body Bolt)
- Test - psi: 600 (kPa: 4,100, bar: 41) - Brass Body, Carbon Steel, 316 Stainless Body (300 Series Stainless Steel Body Bolt)
- Test - psi: 900 (kPa: 6,200, bar: 62) - Brass Body
Ring Material
- Box: PTFE
- Compression: 316 Stainless Steel - Fire-Tite Model
- Compression: Brass - Style 21-11 Model
Seat / Seal Material
- Body Seal: Spiral Wound 316 Stainless Steel - Fire-Tite Model
- Seat, Body Seal, Upper Stem Seal, Lower Stem Seal: PTFE
- Secondary Stem Seal: Graphite - Fire-Tite Model
Service
- Oxygen Service
- Vacuum Service
Spring Material
- Top Ground: Stainless Steel - Style 21-11 Model
Stem Material
- 316 Stainless Steel
- Brass - Style 21-11 Model
Temperature Range
- -29° C (-20° F) - Brass, Carbon Steel
- -29° to 38° C (-20° to 100° F)
- -51° C (-60° F) - 316 Stainless Steel
- -51° to 260° C (-60° to 500° F)
Trim Material
- 316 Stainless Steel
- Brass
Valve Size
- 1/4" to 2" (8 to 50 mm)
Valve Type
- Manual
