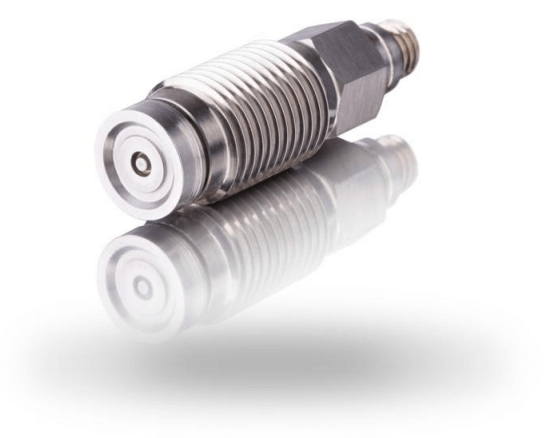

BD Sensors Piezoelectric Pressure Sensor, DAC 160
Images are representations only.

DAC 160 Piezoelectric Pressure Sensor

Brand: BD Sensors

The DAC160 was developed for detecting dynamic pressure changes psi: 0 to 87,000 (bar: 0 to 6,000, kPa: 0 to 600,000) in hydraulic systems. The unique GaPO₄ sensor element allows a sensitivity of 3 pC/bar. It is therefore ideal for resolving small pressure fluctuations across the entire pressure range. The front-sealing sensor in conjunction with the compression fitting is not influenced by either installation or installation position.
Features
  • Single crystal of gallium phosphate GaPO₄
  • Very high pressures psi: 0 to 87,018 (kPa: 0 to 600,000, bar: 0 to 6,000)
  • High sensitivity
  • Excellent long-term stability

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Pressure Range

    • bar: 0 to 6,000
    • kPa: 0 to 600.000
    • psi: 0 to 87,018

    UNF/UNC Connection

    • 10-32 UNF Male
