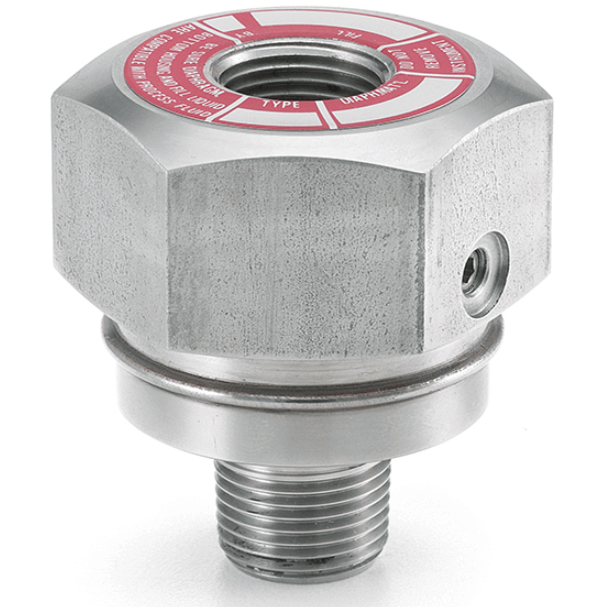

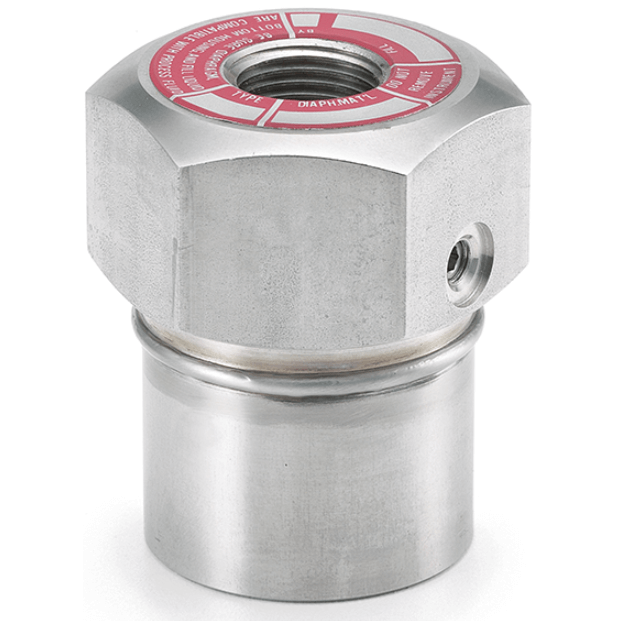

Ashcroft All-Welded Midi Diaphragm Seal, 311/312
Images are representations only.

311/312 All-Welded Mini-Diaphragm Seal

Part Number: TYPE 311/TYPE 312 Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

Ashcroft All-Welded Midi Diaphragm Seal, 311/312
The Ashcroft 311 and 312 midi-diaphragm seals or isolation devices are used in confined areas to protect measuring instruments.

Used to ensure process compatibility, they are also applied when process media exhibits high temperature and pulsation.

This model is ideal with limited space installations.
Features
  • All-welded metal construction, prevents leakage of process media
  • No gaskets or bolts
  • For use on pressure gauges up to 3-1/2" from vacuum to 1,000 psi and 4-1/2" gauges 30 to 1,000 psi
  • Top housing material 316L stainless steel standard
  • Diaphragm materials in 316L stainless steel, Hastelloy® C and tantalum
  • Bottom housing materials in 316L stainless steel and Hastelloy® C
  • 1/4" NPT or 1/2" NPT instrument connections
  • Type 312 furnished with 1/8" NPT flushing connection
  • Type 312 not available in male process connections

Specifications

Brand

Applications

  • Biogas & Biodiesel
  • Chemical & Petrochemical
  • Oil & Gas Applications
  • Oil & Gas Fracking
  • Refineries
  • Water & Wastewater

Approvals & Certifications

  • CRN
  • GOST

Diaphragm Material

  • 316L Stainless Steel
  • Hastelloy® C-276
  • Tantalum

Enclosure, Body Material

  • 316L Stainless Steel
  • Hastelloy® C-276

Fill Material

  • Glycerin
  • Halocarbon
  • Silicone
  • Syltherm

NACE & NIST

  • NACE

NPT Connection

  • 1" NPT Female
  • 1" NPT Male
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male

Pressure Range

  • 4-1/2" Gauge psi: 30 to 1,000 (kPa: 206.8 to 6,895, bar: 2 to 68.95)
  • Up to 3-1/2": Vacuum to psi: 1,000 (kPa: 6,894, bar: 69)

Temperature Range

  • -21° to 398.9° C (-70° to 750° F)
