Cameron Flanged Check Valve, WHEATLEY 500
Images are representations only.

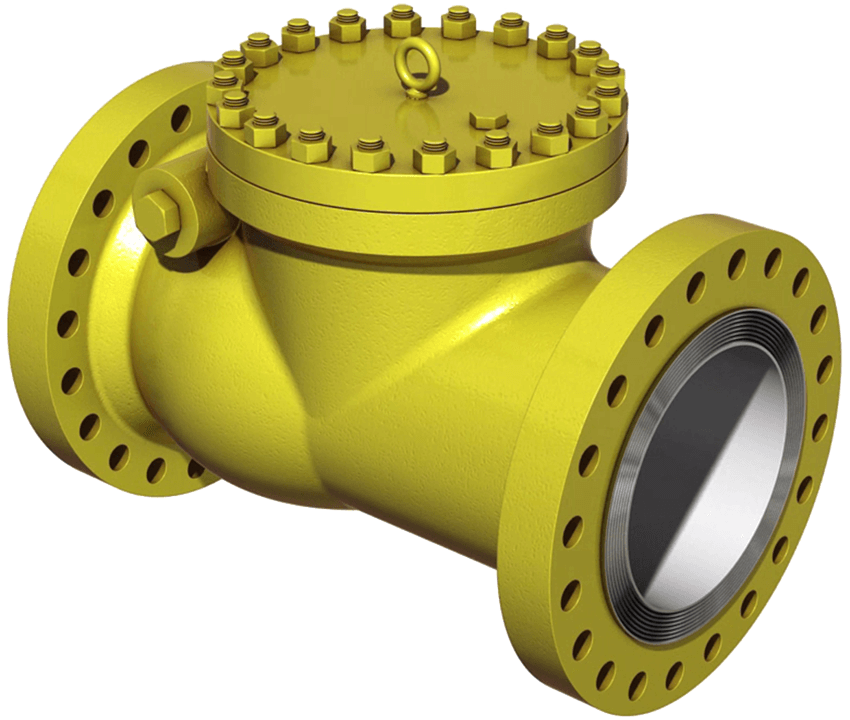

WHEATLEY 500 Flanged Check Valve

Brand: Cameron
Request Information
Favorite

The Cameron WHEATLEY Series 500 check valve is a fire-tested carbon steel flanged end check valve with a full-open, through-conduit design for low pressure drop and less turbulence. The valve's flanges are back-faced. This is an extra manufacturing step that provides smoother bolting surfaces and even bolt loading. Standard Features and Benefits:
  • 316 Stainless steel trim is compatible with a broad range of media and operating conditions
  • Full-open, through-conduit design for low pressure drop and less turbulence. Valves easily pass pigs and spheres
  • 90-durometer, peroxide-cured seals are compatible with a broad range of media and operating conditions
  • Seals provide a bubble-tight shutoff
  • Suitable for vertical flow up or horizontal installation
  • Reduces installation guesswork
  • All materials conform to NACE MR0175/ISO 15156
  • Cast on flanges provide greater valve body integrity and fewer leak points

View Details

Specifications

Brand

Approvals & Certifications

  • API 6D
  • API 6FD

Approvals & Certifications

  • ISO 15156

Cover Material

  • Cast Steel (ASTM A487-4C)
  • WCC Steel (ASTM A216 Gr. WCC)

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel

Flange Size - 1" (DN25)

  • 1" (DN25) - 150# (ASME)
  • 1" (DN25) - 1500# (ASME)
  • 1" (DN25) - 300# (ASME)
  • 1" (DN25) - 600# (ASME)
  • 1" (DN25) - 900# (ASME)
  • 1" (DN25) - PN 100
  • 1" (DN25) - PN 150
  • 1" (DN25) - PN 20
  • 1" (DN25) - PN 250
  • 1" (DN25) - PN 50

Flange Size - 10" (DN250)

  • 10" (DN250) - 150# (ASME)
  • 10" (DN250) - 1500# (ASME)
  • 10" (DN250) - 300# (ASME)
  • 10" (DN250) - 600# (ASME)
  • 10" (DN250) - 900# (ASME)
  • 10" (DN250) - PN 100
  • 10" (DN250) - PN 150
  • 10" (DN250) - PN 20
  • 10" (DN250) - PN 50

Flange Size - 12" (DN300)

  • 12" (DN300) - 150# (ASME)
  • 12" (DN300) - 1500# (ASME)
  • 12" (DN300) - 300# (ASME)
  • 12" (DN300) - 600# (ASME)
  • 12" (DN300) - 900# (ASME)
  • 12" (DN300) - PN 100
  • 12" (DN300) - PN 150
  • 12" (DN300) - PN 20
  • 12" (DN300) - PN 50

Flange Size - 2" (DN50)

  • 2" (DN50) - 150# (ASME)
  • 2" (DN50) - 1500# (ASME)
  • 2" (DN50) - 300# (ASME)
  • 2" (DN50) - 600# (ASME)
  • 2" (DN50) - 900# (ASME)
  • 2" (DN50) - PN 100
  • 2" (DN50) - PN 150
  • 2" (DN50) - PN 20
  • 2" (DN50) - PN 250
  • 2" (DN50) - PN 50

Flange Size - 3" (DN80)

  • 3" (DN80) - 150# (ASME)
  • 3" (DN80) - 1500# (ASME)
  • 3" (DN80) - 300# (ASME)
  • 3" (DN80) - 600# (ASME)
  • 3" (DN80) - 900# (ASME)
  • 3" (DN80) - PN 100
  • 3" (DN80) - PN 150
  • 3" (DN80) - PN 20
  • 3" (DN80) - PN 250
  • 3" (DN80) - PN 50

Flange Size - 4" (DN100)

  • 4" (DN100) - 150# (ASME)
  • 4" (DN100) - 1500# (ASME)
  • 4" (DN100) - 300# (ASME)
  • 4" (DN100) - 600# (ASME)
  • 4" (DN100) - 900# (ASME)
  • 4" (DN100) - PN 100
  • 4" (DN100) - PN 150
  • 4" (DN100) - PN 20
  • 4" (DN100) - PN 250
  • 4" (DN100) - PN 50

Flange Size - 6" (DN150)

  • 6" (DN150) - 150# (ASME)
  • 6" (DN150) - 1500# (ASME)
  • 6" (DN150) - 300# (ASME)
  • 6" (DN150) - 600# (ASME)
  • 6" (DN150) - 900# (ASME)
  • 6" (DN150) - PN 100
  • 6" (DN150) - PN 150
  • 6" (DN150) - PN 20
  • 6" (DN150) - PN 250
  • 6" (DN150) - PN 50

Flange Size - 8" (DN200)

  • 8" (DN200) - 150# (ASME)
  • 8" (DN200) - 1500# (ASME)
  • 8" (DN200) - 300# (ASME)
  • 8" (DN200) - 600# (ASME)
  • 8" (DN200) - 900# (ASME)
  • 8" (DN200) - PN 100
  • 8" (DN200) - PN 150
  • 8" (DN200) - PN 20
  • 8" (DN200) - PN 50

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

Mounting

  • Horizontal or Vertical

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1/2" NPT - Cover Tap for Gauges & Accessories

Nut & Bolt Material

  • Alloy Steel (ASTM A193 B7M) - Stud Material
  • Carbon Steel (ASTM A194 Gr. 2H) - Nut Material
  • Chromium Molybdenum Steel (ASTM A193 Gr. B7) - Stud Material
  • Forged Steel - Eyebolt Material

O-Ring Material

  • FKM - Clapper/Seat O-Ring & Cover O-Ring Material
  • Peroxide-Cured Buna - Clapper/Seat O-Ring, Cover O-Ring & Removable Seat O-Ring Material

Operating Pressure

  • psi: 275 to 5,000 (kPa: 1,896 to 34,470, bar: 18.96 to 344.7)

Plug Material

  • Carbon Steel (ASTM A105) - Pin Plug, Vent Plug & Drain Plug Material

Temperature Range

  • -29° to 121° C (-20° to 250° F) - Standard Trim API 6D
  • -29° to 204° C (-20° to 400° F) - Standard Trim DPV

Valve Size

  • 1" to 12" (25.4 to 304.8 mm)
