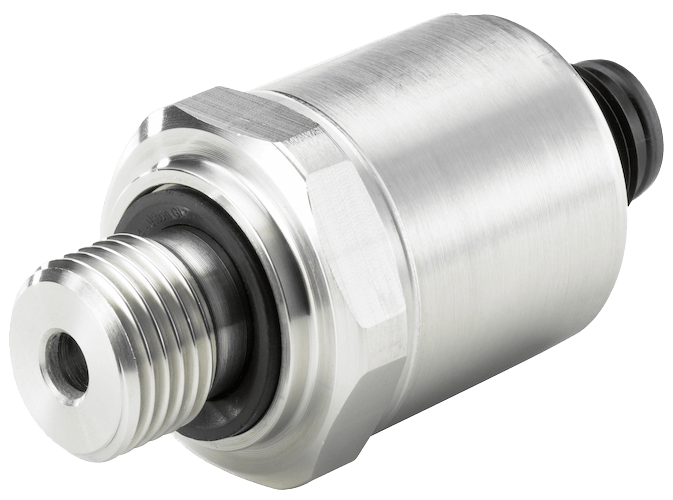

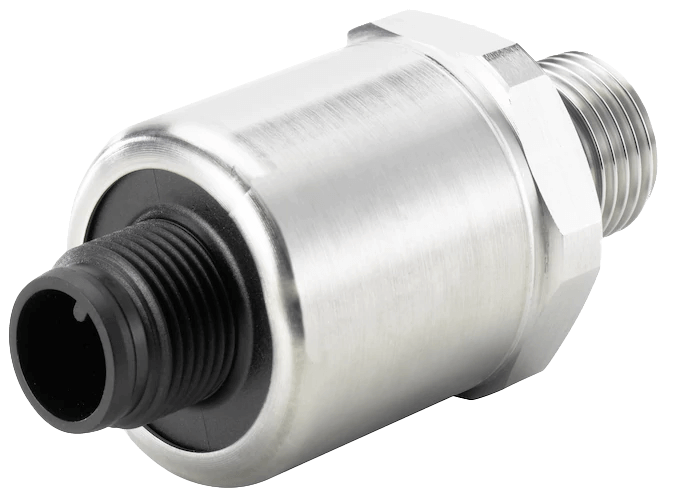

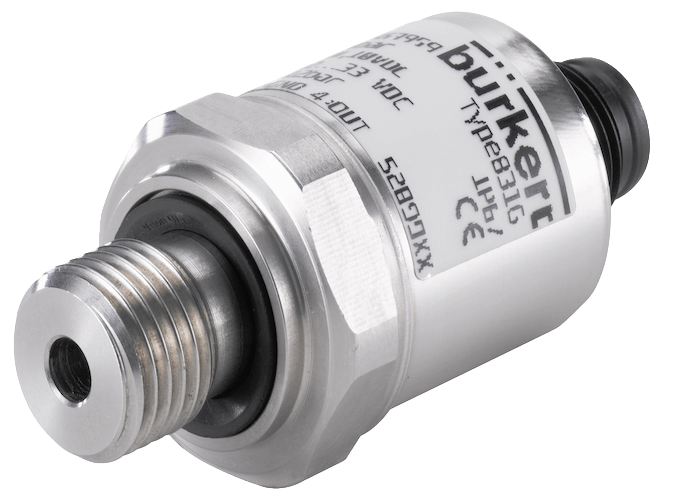

8316 Pressure Transmitter
Brand: Burkert Fluid Control Systems
The compact Type 8316 pressure transmitter meets the highest requirements with regard to mechanical loading, EMC characteristics and operational reliability and is particularly suitable for demanding industrial applications. For aggressive fluids against stainless steel the process connection in PVDF is available.
Features- Ceramic/thick film measurement cell
- Two-wire version for 4-20 mA output
- Compact, stable construction for the highest operational reliability
Specifications
Accuracy
- ≤ 0.5% of Full Scale
Ambient Temperature Range
- -15° to 85° C (5° to 185° F)
Applications
- Industrial Applications
Approvals & Certifications
- Drop Test According EN 60068-2-23 (from 1 Meter on Concrete)
Approvals & Certifications
- CE
- EMC: EN 61326-2-3
- UL (C,US): UL 61010-1 + CAN/CSA-C22 No.61010-1
BSP Connection
- G 1/4" Male
Burst Pressure
- Overload: 2.5 times Full Scale at psi: 87.06 to 1,451 (kPa: 600 to 10,000, bar: 6 to 100)
- Overload: 3 times Full Scale at psi: 0 to 58.04 (kPa: 0 to 400, bar: 0 to 4)
Circuit Protection
- Short Circuit Protected
Electrical Connectors
- DIN, Mini DIN Connectors
- Round Male Connector M12 x 1
Enclosure, Body Material
- 316L Stainless Steel, 1.4404
Environmental Protection
- IP67
Mounting Position
- Downward Position
NPT Connection
- 1/4" NPT Male
Operating Voltages
- 7-33 Vdc, Unregulated
Output
- 0-10 Vdc, 3-Wire
- 0-5 Vdc
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0 to 100
- kPa: 0 to 10,000
- psi: 0 to 1,451
Process Connection Material
- PVDF
Process Temperature
- -15° to 125° C (5° to 257° F)
Resolution
- 0.1% of Full Scale
Response Time
- Dynamic Response: < 2 milliseconds (Suitable for Static & Dynamic Measurements)
- Dynamic Response: Typically 1 milliseconds (Suitable for Static & Dynamic Measurements)
Reverse Polarity Protection
- Protected Against Reverse Polarity
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Shock
- 25 G, 6 milliseconds Half Sine Wave, All Three Directions (According EN 60068-2-27)
Temperature Coefficient
- < 0.2% of Full Scale/10K
Vibration
- 50 m/sec at 10 to 1,000 Hz, 1 Octave/min, 20 Constant Load Per Axis (According EN 60770-1)
Wetted Materials
- 316L Stainless Steel, 1.4404
- Ceramics (Al₂O₃)
