3363 Electromotive Diaphragm Control Valve

Brand: Burkert Fluid Control Systems
Request Information
Favorite

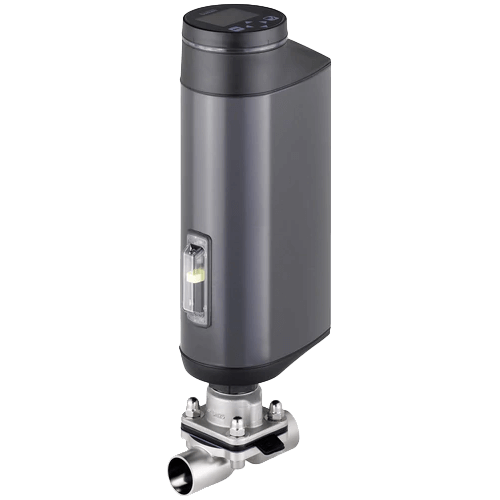

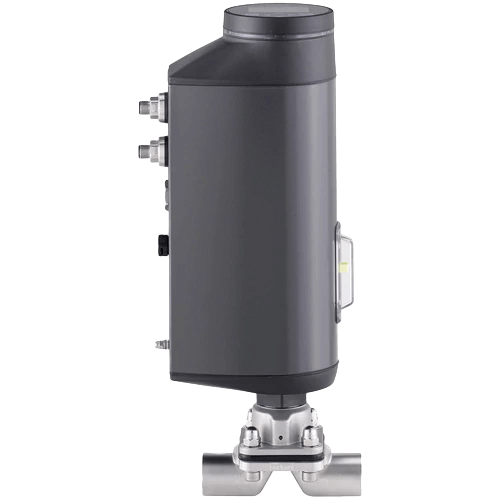

Burkert Electromotive Diaphragm Control Valve, 3363
The innovative diaphragm control valve Type 3363 is the solution when it comes to demanding control tasks in areas with media contact such as the Food and Beverage, Cosmetic, Pharma and Biopharma Industry.

The electromotive actuator with ball screw positions the diaphragm with quasi delay free with highest precision and - for electromotive valves - unique speed of 4 mm/s that can be varied According to plant design.

Pressure variations or shocks in the medium aren't transferred to the valve position. If necessary, the safety position can be realized with optional energy storage in case of power failure.

Many helpful functions for process monitoring, valve diagnostics and predictive maintenance can be used. Beside the mechanical position indication a 360°- LED illuminated ring displays valve position and information about warnings or errors.

Communication is possible with both Analog signals and modern fieldbus systems.

Specifications

Brand

Ambient Temperature Range

  • with Display: -10° to 60° C (14° to 140° F) - Depends on Media (Process) Temperature
  • with SAFEPOS Energy Storage: -10° to 55° C ( 15° to 130° F) - Depends on Media (Process) Temperature
  • without Display: -10° to 65° C (15° to 150° F) - Depends on Media (Process) Temperature

Applications

  • Cosmetics
  • Food Stuffs/Sterile Applications
  • Pharma & Bio-pharma Industry

Approvals & Certifications

  • EHEDG
  • FDA

Approvals & Certifications

  • Inspection Certificate 3.1 According to EN 10204 - Material Test Report
  • Inspection Certificate 3.1 According to EN 10204 - Surface Roughness Measurement
  • Test Report 2.2 According to EN 10204

Battery Life

  • Energy Storage SAFEPOS Energy-Pack: 10-Years - Depending on Operating Conditions

Communication

  • Ethernet/IP
  • Modbus/TCP
  • Profinet

Current

  • Analog Control (Setpoint): 0-20 mA
  • Operating: 3 A, Maximum

Deadband

  • 0.4% Minimum

Diaphragm Material

  • EPDM Laminated (AB, AD, EU, ER)
  • FKM (FF)
  • PTFE (EA, EU)

Display

  • Touch Screen

Duty Cycle

  • 100% Duty Cycle

Electrical Connectors

  • 1 & 2 Circular Plug-in Connector M12, 5-Pin & 8-Pin
  • 2 x M20, Cable Gland

Enclosure Finish

  • Internally Electro-Polished [Ra≤ 0.38 μm (ASME BPE SF4)]
  • Internally Mechanically Polished [Ra≤ 0.5 μm (ASME BPE SF1)]

Enclosure, Body Material

  • Actuator Housing: Aluminum Powder-Coated
  • Forged, Tube, Cast: AISI 316L Stainless Steel (1.4435/BN2)
  • Polypropylene (PP)
  • Polyvinyl Chloride (PVC)
  • Polyvinylidene Fluoride (PVDF)

Environmental Protection

  • IP65
  • IP67

Flow Rate

  • 0.5 to 41 m³/hour (Kvs) - Forged Body
  • 2 to 47 m³/hour (Kvs) - Tube Body
  • 3.5 to 26 m³/hour (Kvs) - Plastic Body

Indication

  • LED

Input

  • 0-5 V (Log 0) - Inverted Input Reversed Accordingly
  • 10-30 V (Log 1) - Inverted Input Reversed Accordingly
  • Analog Input Setpoint: 0-10 V at (Input Resistance 22 KiloOhms) - Galvanically Isolated from the Supply Voltage & Analog Output
  • Analog Input Setpoint: 0-20 mA at (Input Resistance 60 ohms) - Galvanically Isolated from the Supply Voltage & Analog Output

Interface Connection

  • CAN
  • USB-Bus

Materials of Construction

  • Actuator (Top, Bottom Part): Polyphenylene Sulfide
  • Interface: AISI 304H Stainless Steel (1.4308)

Measuring Range

  • Analog Input (Frequency): -20° to 220° C (-4° to 428° F)

Media

  • Aggressive or Abrasive Fluids
  • Liquids
  • Neutral Gases
  • Sterile

Mounting Position

  • Prefer: Upright with Actuator

Name Plate, Tag Material

  • AISI 316L Stainless Steel (1.4435)

Nominal Pressure

  • psi: 232.1 (kPa: 1,600, bar: 16)

Operating Pressure

  • EPDM, FKM - psi: 58 to 145 (kPa: 400 to 1,000, bar: 4 to 10), Maximum
  • PTFE, Advanced PTFE, Gylon - psi: 36 to 145 (kPa: 250 to 1,000, bar: 2.5 to 10), Maximum

Operating Voltages

  • 24 Vdc at ± 10%, Maximum

Operation

  • Electrical Operation
  • Manual Operation

Output

  • Analog Burde (Last): 0 to 560 ohms (For Current Output 0-20 / 4-20 mA)
  • Analog Current: 10 mA - Maximum
  • Digital Current Limit: 100 mA

Power

  • Electronic without Actuator (W): 2-5 W, Maximum

Power Supply

  • 24 Vdc ± 10%, Maximum

Process Temperature

  • EPDM (AB), PTFE/EPDM (EA): -10° to 130° C (14° to 266° F) - Steam Sterilisation +140° C (284° F) for 60 Minute
  • EPDM (AD), Advanced PTFE/EPDM (EU): -5° to 143° C (23° to 289° F) - Steam Sterilisation +150° C (302° F) for 60 Minute
  • FKM (FF): 0° to 130° C (32° to 266° F) - Not Recommended for Steam
  • Gylon/EPDM Laminated (ER): -5° to 130° C (23° to 266° F) - Steam Sterilisation +140° C (284° F) for 60 Minute

Resistance

  • Analog Input (4-20 mA): 60 ohms
  • Analog Input Resistance (Frequency): > 30 KiloOhms

Resolution

  • Analog Input (Pt100): < 0.1° C (< 32.18° F)
  • Analog Input Frequency: 1% of Measurement Value

Response Time

  • Closure Time: < 1.5 to 4.5 seconds - Depends on Diaphragm Size

Seat / Seal Material

  • Seal: EPDM

Shock

  • Mechanical: 50 G According to IEC 60068-2-27 Test Ea

Size

  • Diaphragm: 0.31 to 1.57" (8 to 40 mm)

Speed

  • Travel: 4 mm/sec

Switch Type

  • DIP Switches

Tri-Clamp Connection

  • 1" Tri-Clamp®
  • 1/2" Tri-Clamp®
  • 1/4" Tri-Clamp®
  • 1-1/2" Tri-Clamp®
  • 1-1/4" Tri-Clamp®
  • 2" Tri-Clamp®
  • 3/4" Tri-Clamp®
  • 3/8" Tri-Clamp®

Valve Type

  • Diaphragm On/Off Valve
  • Manual

Vibration

  • Sinusoidal: 5 G According to IEC 60068-2-6 Test Fc

Voltage

  • Analog Control (Setpoint): 0-10 V

Welded Connection

  • 1" Weld End
  • 1/2" Weld End
  • 1/4" Weld End
  • 1-1/2" Weld End
  • 1-1/4" Weld End
  • 2" Weld End
  • 3/4" Weld End
  • 3/8" Weld End
