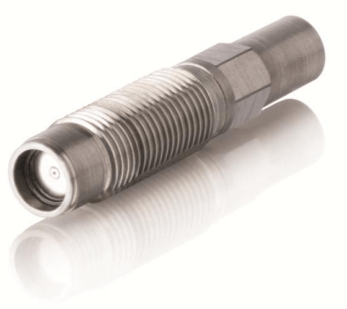

DAC 106 K Piezoelectric Pressure Sensor

Brand: BD Sensors
Request Information
Favorite

The sensor was developed for dynamic and quasistatic pressure detection psi: 0 to 4,351 (kPa: 0 to 30,000, bar: 0 to 300). The sensor element with Crystal Match technology enables exceptional signal detection across the entire temperature range. The monocrystalline GaPO₄ sensor element allows constant sensitivity and thus ensures excellent performance. Thanks to its size (M5x0.5 thread) and its temperature resistance 0° to 400° C (0° to 752° F), the sensor is suitable for a broad range of applications.
Features
  • Compact Construction
  • Extended Pressure Range
  • High temperature resistance 400° C (752° F)
  • High natural frequency
  • Constant sensitivity across the entire service life

    • Specifications

    Brand

    Approvals & Certifications

    • TÜV NORD

    Enclosure, Body Material

    • Stainless Steel

    Metric Connection

    • M5 x 0.5

    Pressure Range

    • bar: 0 to 300
    • kPa: 0 to 30,000
    • psi: 0 to 4,350
