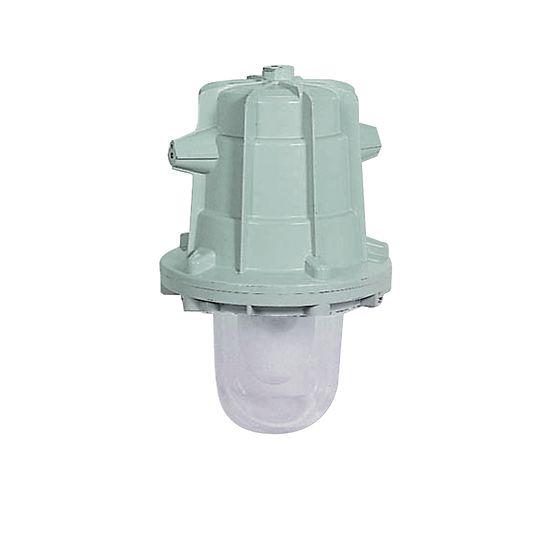

Appleton™ ATX™ LDB, LDG, LRD Series Wellglass Luminaires

Brand: Appleton

ATX™ LDB, LDG, LRD Series Wellglass Luminaires are designed for a variety of E40 base lamps. These flameproof fixtures are ideal for street lighting on refinery sites or oil depots and for tank lighting purposes.
Features
  • Typical applications include hazardous locations such as plants where plastics, paints, thinners and petrochemicals are manufactured.

  • Operates in any position subject to lamp type.

  • E40 lamp holder with lock thread (lamps are not supplied, except for Induction version).

  • Compensated power supply.

  • Power factor ? 0.9.

  • Flat joint for IIB version, threaded joint for IIC version.

  • High temperature internal wiring.

  • Easy and efficient wiring due to separate Ex e terminal box with wiring onto two captive terminals capacity 6 mm² (2 x 0.009 in²) and two internal earth terminals capacity 6 mm² (0.009 in²).

  • External earth terminal capacity 4 mm² (0.006 in²).

  • 2 x 20 mm clearance holes through-wire cable entries supplied with one Ex e unarmored cable gland — sealing diameter 6.5 to 14.5 mm (0.26 to 58 in) — and one blanking plug and two M20 locknuts.

    • Specifications

    Brand

    Ambient Temperature Range

    • -40° to +55° C (-40° to +131° F)

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66/67, IK08

    Specific Wattages

    • 100 W High Pressure Sodium, 150 W High Pressure Sodium, 250 W High Pressure Sodium, 400 W High Pressure Sodium, 250 W Mercury, 250 W Metal Halide, 400 W Metal Halide, 250 W Mixed, 300 W Incandescent, 500 W Incandescent, 85 W Induction

    Standard Materials & Finishes

    • Gray Painted Marine Grade Aluminum Alloy Body & Bezel with Aluminum Internal Reflector & White Painted Zinc-Plated Steel External Reflector
