Cameron Floating Ball Valve, Series FB
AOP offers a wide range of floating ball valves. The designs have been developed based on our customers requirements. When you specify an AOP ball valve, you have selected a premier product. With our state of the art manufacturing techniques, our valves are manufactured to the highest standards ensuring superior performance. AOP ball valves are stocked by a network of authorized distributors to service the petroleum producing and refining industries.
Features
  • Stem is back-seated and positively retained: cannot be removed with the valve in service
  • Stem lube fitting and weather seal
  • Fire tested and certified to API 607 latest edition
  • TFM, Nylon, and Peek seats available
  • Anti-static device
  • Standard locking handle
  • Conforms to NACE MR0175/ISO 15156 for non-buried service, with stainless steel internals
  • Available in both standard bore and full bore
  • Double stem flat design indicates ball position

    • Specifications

    Brand

    Actuator Type

    • Bare Stem

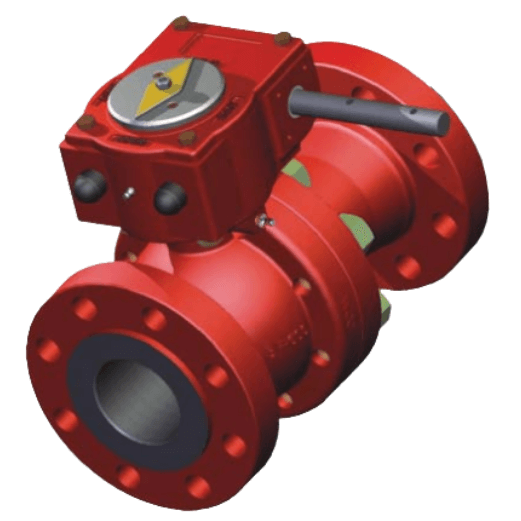

    • Gear Operator
    • Gear Operator with Locking Device

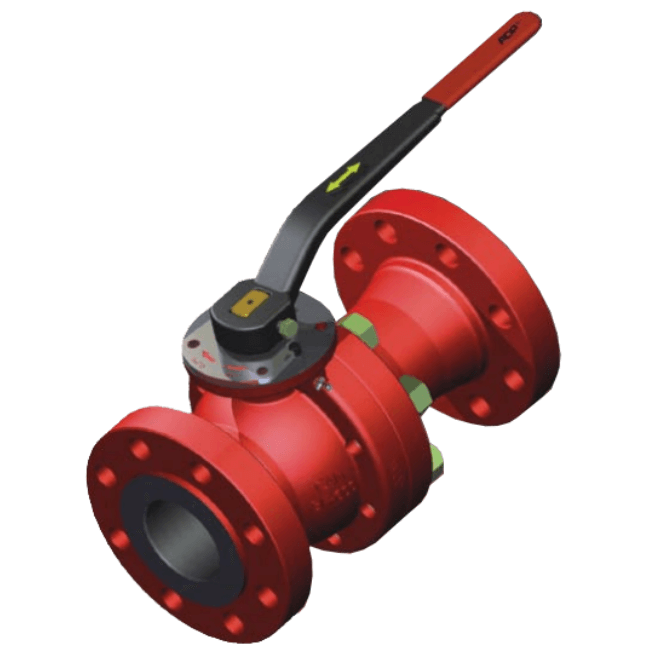

    • Handle with Locking Device

    Approvals & Certifications

    • API 607 - Fire Tested
    • ISO 5211

    Ball Material

    • 316 Stainless Steel NACE - A 105 1 MIL ENP

    Bearing Material

    • Nylon - Stem Bearing
    • PTFE - Stem Bearing

    Bore Size

    • 1" to 8" (25.4 to 203.2 mm)

    Enclosure, Body Material

    • ASTM A216 WCC Carbon Steel

    Flange Size - 1-1/2" (DN40)

    • 1-1/2" (DN40) - 150# (ASME)
    • 1-1/2" (DN40) - 1500# (ASME)
    • 1-1/2" (DN40) - 300# (ASME)
    • 1-1/2" (DN40) - 600# (ASME)
    • 1-1/2" (DN40) - 900# (ASME)

    Flange Size - 1" (DN25)

    • 1" (DN25) - 150# (ASME)
    • 1" (DN25) - 1500# (ASME)
    • 1" (DN25) - 300# (ASME)
    • 1" (DN25) - 600# (ASME)
    • 1" (DN25) - 900# (ASME)

    Flange Size - 10" (DN250)

    • 10" (DN250) - 150# (ASME)
    • 10" (DN250) - 300# (ASME)

    Flange Size - 2" (DN50)

    • 2" (DN50) - 150# (ASME)
    • 2" (DN50) - 1500# (ASME)
    • 2" (DN50) - 300# (ASME)
    • 2" (DN50) - 600# (ASME)
    • 2" (DN50) - 900# (ASME)

    Flange Size - 3" (DN80)

    • 3" (DN80) - 150# (ASME)
    • 3" (DN80) - 300# (ASME)
    • 3" (DN80) - 600# (ASME)
    • 3" (DN80) - 900# (ASME)

    Flange Size - 4" (DN100)

    • 4" (DN100) - 150# (ASME)
    • 4" (DN100) - 300# (ASME)
    • 4" (DN100) - 600# (ASME)

    Flange Size - 6" (DN150)

    • 6" (DN150) - 150# (ASME)
    • 6" (DN150) - 300# (ASME)
    • 6" (DN150) - 600# (ASME)

    Flange Size - 8" (DN200)

    • 8" (DN200) - 150# (ASME)
    • 8" (DN200) - 300# (ASME)

    Flange Type

    • Flanged Raised Face (RF) - End Connection
    • Flanged Ring Typical Joint (RTJ) - End Connection

    Handle Assembly Material

    • A536 Grade 65-45-12

    Materials of Construction

    • ASTM A216 WCC Carbon Steel - Adapter
    • Steel - Lube Fitting & Stop Pin
    • Zinc-Plated Steel - Stop Plate

    NACE & NIST

    • NACE MR-0175, ISO 15156

    Nut & Bolt Material

    • ASTM A193-B7 - Studs
    • ASTM A194 2H - Hex Nut
    • ASTM A574 Grade 5 - Handle Bolt

    Port

    • Full
    • Standard

    Pressure Range

    • psi: 285 to 3,405 (kPa: 1,965 to 23,480, bar: 19.65 to 234.8)

    Ring Material

    • Spring Steel - Retaining Ring

    Seat / Seal Material

    • FKM - Body & Stem Seal
    • GLT - Seal
    • HNBR - Body & Stem Seal
    • Nylon - Weather Seal & Seat
    • PEEK - Seat
    • TFM - Seat

    Spring Material

    • Inconel® X-750 - Anti Static

    Stem Material

    • 316 Stainless Steel NACE (4130/4140 1 MIL ENP)
    • Nylon - Stem Washer
    • Teflon - Stem Washer

    Trim Material

    • 316 Stainless Steel
    • Carbon Steel

    Valve Size

    • 1" to 10" (25 to 250 mm)
