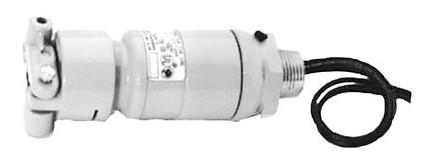

Appleton™ ECC Factory Sealed 20 Amp Portable Cord Connector

Brand: Appleton

ECC Factory Sealed 20 Amp Portable Cord Connector is both explosionproof and dust-ignitionproof. Constructed of epoxy powder coated copperfree aluminum, this durable connector is generally used for equipment that requires limited or short range mobility. It is ideal for connecting a portable cord to a fixed enclosure.
Features
  • For use with No. 18 thru 12 AWG 3-Conductor Type S or SO cord.

    • Specifications

    Brand

    Amperage

    • 20 A

    Hazardous Area Classification

    • Class I, Division 1, & 2, Groups B, C, D, Class II, Division 1, & 2, Group G, Class III, NEMA 7B, C, D, 9 G, Watertight

    Materials & Finishes

    • Copperfree (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat.

    Nipple Size

    • 1/2" or 3/4"

    Plug Cable Diameter

    • .250 - .375, .375 - .500 or .500 - .625"

    Type of Cable

    • 18 Thru 12 AWG 3-Conductor Typical S or SO Cable

    Voltage

    • 480 Vac
