Emerson Appleton Fixture Hanger, SSH
Images are representations only.

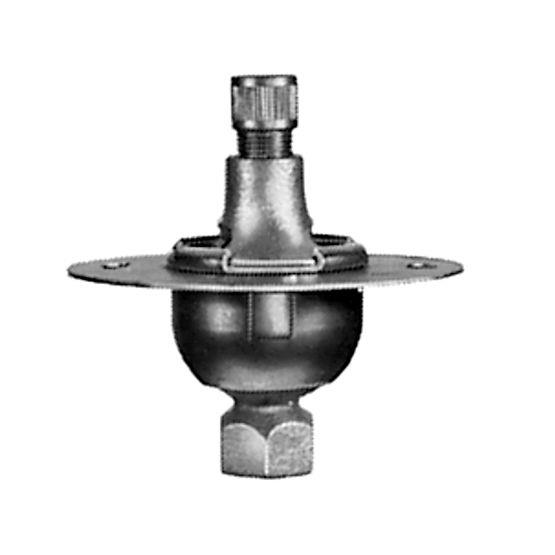

Appleton™ SSH Flexible Fixture Hangers

Brand: Appleton

SSH Flexible Fixture Hangers are used for the suspension of HID, fluorescent and incandescent lighting fixtures. The heavy duty design makes them ideal for mounting to outlet and concrete boxes. These Ball Type hangers allow for a 20° swing.
Features
  • Protects fixture against wind and vibration damage.

  • Cushion type for added protection where lighting fixtures are subjected to vibration.

  • Heavy duty, supports fixtures up to 22.7 kg (50 lbs).

  • Steel plate serves as cover for outlet or concrete box.

  • Ball type swivel joint permits 20°swing from vertical.

  • The weight of the entire suspended unit is borne by a fixture stud instead of relying upon the screws and screw ears of the box or ring for support.

  • SSH hanger is furnished with a steel plate to serve as a cover for the 4" concrete, octagonal, and 4-11/16" square boxes.

    • Specifications

    Brand

    NEC/CEC Certifications & Compliances

    • Listed for Ordinary (Unclassified) Locations

    Standard Materials & Finishes

    • Malleable Iron & Steel with Zinc Electroplate & Clear Chromate Finish

    Documentation

    Product Manuals

    Catalogs
