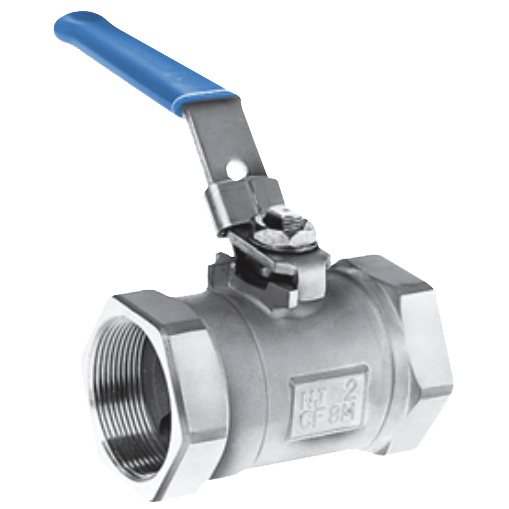

Jamesbury Series 3000 Screwed NPT Ball Valve
Brand: MetsoJamesbury Series 3000 ball valves are perfect for applications where positive, long-lasting shutoff is required. Ideal for vent, by-pass, sampling, and gauge locations, these valves provide effective shutoff in a wide range of process industry, manufacturing, commercial, and OEM services.
Seating options permit the handling of mild abrasives, steam, and applications with wide temperature swings.
Series 3000 valves are available in carbon steel with 316 stainless steel trim, or all 316 stainless steel.
Seat options include PTFE (T) for services to 204° C (400° F); filled PTFE (M) for abrasive services, service to 260° C (500° F), steam to psi: 250 (kPa: 1,700, bar: 17), or for applications with wide temperature fluctuations; and Acetal (R) seats for services to psi: 2,000 (kPa: 13,800, bar: 138).
Specifications
Brand
Applications
- Manufacturing Industry
- OEM Applications
- Process Industry
Approvals & Certifications
- API607 Edition 4
Ball Material
- 316 Stainless Steel
Bearing Material
- Stem: Acetal Homopolyer
- Stem: Filled PTFE
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCB)
Flow Rate
- 3 to 52 Cv
Handle Assembly Material
- Handle: Carbon Steel
- Handle: Stainless Steel
Materials of Construction
- Insert, Lock Washer: Coated Carbon Steel
- Insert, Stem Washer (Upper, Lower) 1" to 2" (25 to 50 mm): Coated 316 Stainless Steel
- Lock Washer: Stainless Steel
Media
- Steam
- Water
Mounting
- Field Mounting
NPT Connection
- 1" NPT Female
- 1/2" NPT Female
- 1/4" NPT Female
- 1-1/2" NPT Female
- 1-1/4" NPT Female
- 2" NPT Female
- 3/4" NPT Female
- 3/8" NPT Female
Nut & Bolt Material
- Stem Nut: 304 Stainless Steel
Operating Pressure
- psi: 2,000 (kPa: 13,800, bar: 138)
Operating Temperature
- -29° to 38° C (-20° to 100° F)
Pressure Drop
- psi: 1 (kPa: 6.9, bar: 0.69)
Seat / Seal Material
- Seat: Acetal Homopolymer
- Seat: PTFE or Filled PTFE
- Stem Seal: Graphite
Stem Material
- 316 Stainless Steel
Trim Material
- 316 Stainless Steel
Valve Size
- 1/4" to 2" (8 to 50 mm)
Valve Type
- Manual
