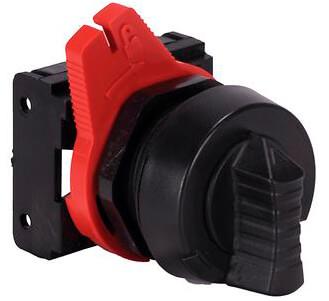

Appleton™ Unicode™ 2 Series Rotary Actuators

Brand: Appleton
Request Information
Favorite

Appleton™ rotary actuators for Increased Safety Unicode™ 2 Series enclosures are available for use in conjunction with contactors. Our 2-posistion rotary actuators can be used with 2 and 3-position selector switches.
Features
  • Can be equipped with up to three Unicode 2 Series Contact Blocks (UCB) Series contact blocks.

  • Globally certified.

  • Available in TS35 rail mounted or panel mounted.

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10

    ATEX & IECEx Surface Temperature

    • -40° to +60° C (-40° to +140° F)

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D, Class I, Zone 1, AEx De IIC, Class I, Zone 1, AEx E IIC, Class II, Division 2, Groups F, G, Class III, Typical 4X, IP66

    NEC/CEC Operating Temperature

    • -40° to +60° C (-40° to +140° F)

    Standard Materials

    • Thermosetting Plastic Body with Ethylene Propylene Diene Monomer (M-class) Rubber (EPDM) Seal
