Emerson Appleton Industrial Baymaster™ LED Luminaire
Images are representations only.

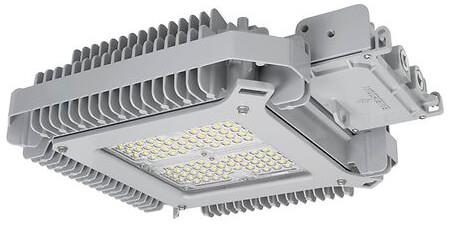

Appleton™ Industrial Baymaster™ LED Luminaire

Brand: Appleton
Request Information
Favorite

The Appleton™ Industrial Baymaster™ LED and Industrial Baymaster High Lumen LED luminaires quick-mount pendant system and secondary optics combine innovation, versatility and rugged reliability to bring you a best in class, high bay luminaire. With exceptional efficiency and unbeatable performance, these luminaires offer quicker installation speeds and easier maintenance. The Baymaster LED and Baymaster HL LED offer 9K through 38K lumen levels in two color temperatures and three NEMA beam patterns. Enclosed and gasketed, the Industrial Baymaster LED and Industrial Baymaster High Lumen LED are ideal for use in applications and environments requiring dependable, consistent lighting, and a high degree of ingress protection.
Features
  • Typical applications include manufacturing plants, storage areas, warehouses, platforms, loading docks, food processing facilities and parking garages
  • The Quick Mount Pendant System. Unique to the industry, this compact luminaire offers a quick-mount pendant system which makes for faster and safer installations. Just pre-wire the mounting hood, line the arrows up, and lock into place, the need for a multi-person installation team disappears.
  • Secondary Optics. Baymaster stands out with secondary optics placed over the LED to help shape the light, allowing for a variety of applications. With the choice of aisle, narrow, medium, or wide beam spreads, optimal light distribution in challenging areas such as aisleways and walkways becomes possible.
  • Rugged and Durable Housing. Mounting hoods and bodies are made from copperfree aluminum with a baked epoxy-clad finish, electrostatically applied for complete uniform protection. Superior thermal design that is shock and impact resistant translates to a longer luminaire life.
  • The rugged and durable construction of the Baymaster is ideal for harsh industrial and hazardous conditions. Heavy duty, high temperature silicone rubber gaskets. Captive fasteners secure one piece lens.
  • Large Lumen Output Range and Color Options. With 6 lumen output ranges (9,500, 15,000, 19,500, 24,000, 30,000, and 38,000K) to choose from, you'll have flexibility for lots of different mounting heights and illumination levels. Two different color options (5000K cool white and 3000K CCT warm white) give you a choice and superior lighting quality.
  • Replaceable Components. For ease of maintenance the Baymaster offers a field replaceable LED driver and lens cover.
  • Options and Upgrades. The frosted glass lens reduces glare, creating a more pleasant and comfortable working environment. Additional surge protection option allows for a robust 10kV of surge protection. An alternative mounting system offers chain mounting.
  • 6 kV surge protection included and an extended 10 kV surge protection option available.
  • Wide Ambient Temperature Range. With an ambient temperature range of -40° C to +65° C (-40° F to +149° F), you can use the luminaire in almost every environment, from Alaska to the Middle East and every place in between.
  • Choice of Input Voltages: 120-277 Vac 50/60 Hz, 125-300 Vdc or 347-480 Vac 50/60 Hz
  • Two 3/4" NPT entries provided. (Two close up plugs provided when quick mount pendant system is ordered). One 1/2" NPT close up plug provided on quickmount model for use with accessory drain assembly

Specifications

Brand

NEC/CEC Certifications & Compliances

  • Marine Outside Typical (salt Water) for USA Only, Wet Locations, Typical 3R, 4, 4X, IP66/67

Options

  • Safety Cable, Guard, 10 kV Surge Protection, Y Mount Cable Assembly, & Drain Assembly are available. See Catalog Pages for Details

Standard Finishes

  • Housing, Lens Cover, Quick Mount Body & Hood have Electrostatically Applied Baked Gray Epoxy Powder Coat Finish

Standard Materials

  • Copperfree (4/10 of 1% Max.) Aluminum Housing, Lens Door, Quick Mount Hood & Body. Silicone Rubber Gaskets & Stainless Steel Exterior Hardware, Guard & Safety Cable. Aluminum Close Up Plugs
