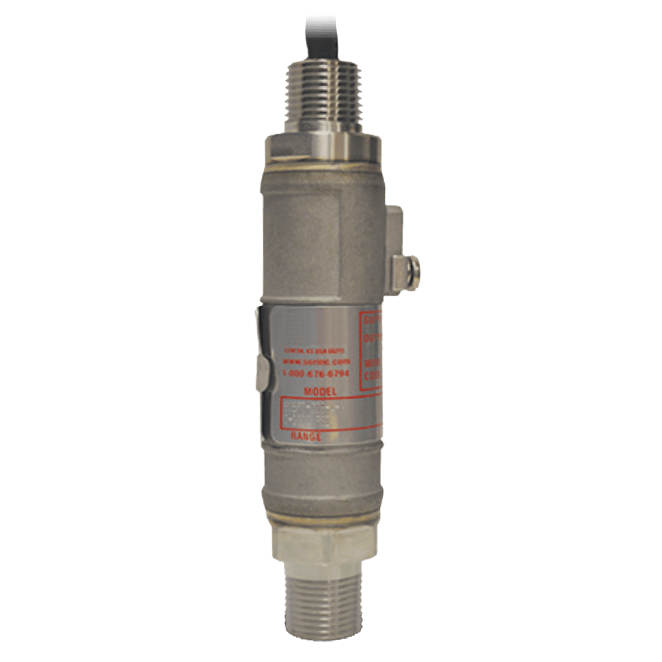

805QS Pressure Switch-Transmitter

Brand: Cameron

The 805QS Pressure Switch-transmitter is a compact loop-powered pressure switch-transmitter. A supplemental continuous output is also available (either 4-20 mA or 1-5 Vdc). Its rugged construction makes cost of ownership low and it carries a three-year warranty. The 805QS pressure switch-transmitter is suitable for hazardous locations and hostile environments where space is limited. It meets applications where low-cost, discrete and continuous monitoring is preferred. Switch set points and supplemental continuous output zero and span points are field adjusted via Calibration Kit with USB communication cable.

    Specifications

    Brand

    Accuracy

    • ± 0.25% of URL - BFSL - Supplemental Continuous Output
    • ± 2% of URL - Primary Switch Output

    Ambient Temperature Range

    • -40° to 80° C (-40° to 176° F)

    Approvals & Certifications

    • Calibration
    • Compliance/Conformance
    • Hydrostatic Pressure Test
    • Inspection Report
    • Typical Material of Wetted Parts

    Approvals & Certifications

    • ATEX II 2 G Ex D IIC T5
    • CE
    • CSA Only for Stainless Steel Universal Terminal Box, 1/2" NPT Female
    • FM Explosion-proof Hazardous Locations: Class I, II, III, Division 1, Groups A-G, T5, Typical 4X, Non-Incendive: Class I, II, III, Division 2, Groups A-G, T5, Typical 4X
    • INMETRO

    Burst Pressure

    • psi: 0 to 1,000 (kPa: 0 to 6,895, bar: 0 to 68.95) 20 times FSPR
    • psi: 0 to 10,000 (kPa: 0 to 68,950, bar: 0 to 689.5) 4 times FSPR
    • psi: 0 to 2,500 (kPa: 0 to 17,240, bar: 0 to 172.4) 10 times FSPR
    • psi: 0 to 250 (kPa: 0 to 1,724, bar: 0 to 17.24) 40 times FSPR
    • psi: 0 to 5,000 (kPa: 0 to 34,474, bar: 0 to 344.7) 8 times FSPR

    Circuit Protection

    • EMI/RFI Protected
    • Reverse Polarity

    Compensated Temperature

    • -40° to 80° C (-40° to 176° F)

    Electrical Connectors

    • 1/2" NPT Female Universal Terminal Box
    • 1/2" NPT Male
    • 18 AWG Shielded Cable, 72" (1,829 mm) Length
    • M20 x 1.5 F Universal Terminal Box

    Electrical Contacts

    • Normally Open - Primary Switch Output

    Electrical Rating

    • 30 V, 120 mA - Primary Switch Output

    Enclosure, Body Material

    • 316 Stainless Steel
    • CF8M Stainless Steel

    Environmental Protection

    • Cleaned for Industrial Oxygen Service
    • IP66
    • NEMA 4X

    Loop Resistance

    • 800 ohms at 24 Vdc

    Mounting

    • Pipe

    NPT Connection

    • 1/2" NPT Male
    • 1/4" NPT Female

    Output

    • 1-5 Vdc Option (27 mW ± 5 mW at 9 Vdc) - Supplemental Continuous Output
    • 4-20 mA - Supplemental Continuous Output

    Overpressure & Static Pressure Limits

    • psi: 0 to 10,000 (kPa: 0 to 68,950, bar: 0 to 689.5) 2 times FSPR - over Pressure
    • psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 7) 3 times FSPR - over Pressure

    Process Connection Material

    • 630 Stainless Steel

    Process Temperature

    • -40° to 90° C (-40° to 194° F)

    Response Time

    • ≤ 5 milliseconds

    Stability

    • ≤ ± 0.5% of URL Per Year - Long Term

    Storage Temperature

    • -40° to 90° C (-40° to 194° F)

    Supply Voltage

    • 8-30 Vdc

    Switch Type

    • Solid State Relay

    System Pressure

    • bar: 0 to 689.5
    • kPa: 0 to 68,948
    • psi: 0 to 10,000

    Temperature Effect

    • ± 1% of URL/38° C (100° F) at -40° to 80° C (-40° to 176° F) - Supplemental Continuous Output
    • ± 2% of URL/38° C (100° F) at -40° to 80° C (-40° to 176° F) - Primary Switch Output

    Turndown

    • 2:1 for 100 psi Range - Supplemental Continuous Output
    • 5:1 (Standard) - Supplemental Continuous Output

    Wetted Materials

    • 630 Stainless Steel

    Zero Offset

    • +10% of URL - Supplemental Continuous Output
