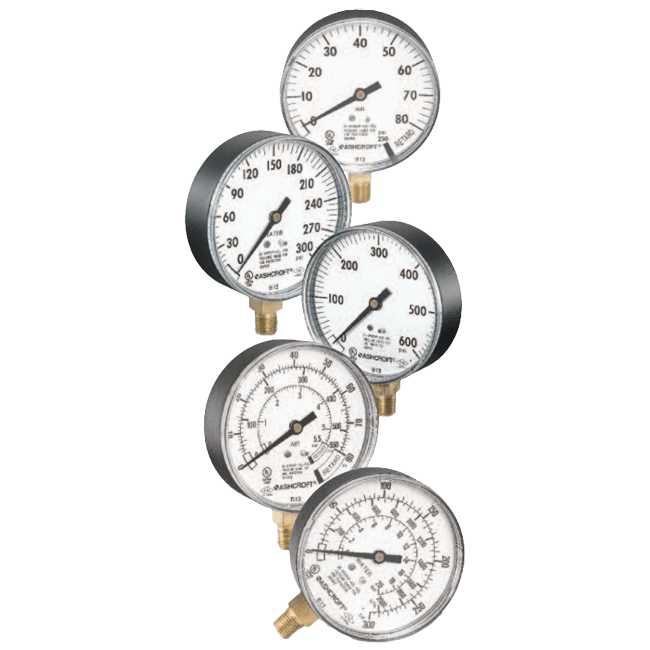

1005P XUL Fire Protection Sprinkler Service Gauge
Brand: Ashcroft Inc.
Ashcroft fire protection sprinkler gauges are Underwriters Laboratory listed and Factory Mutual approved for fire protection sprinkler service. The case material on Type 1005P, XUL gauges is ABS. The 0-300 psi pressure range is used on “wet” systems where water is available to the sprinkler heads.
The 0-80 retard to 250 psi pressure range is used on dry systems where the lines are filled with air pressure until system activation. The 0 to 600 psi gauge is available for systems requiring higher pressures.
Features- Underwriters laboratory listed and factory mutual approved
- Corrosion-resistant ABS case
- Heat-resistant polycarbonate push-in window
- Patented PowerFlex movement with polyester segment
- True Zero indication, a unique safety feature
Specifications
Brand
Accuracy
- ASME B 40.100 Grade B (± 3-2-3% of Span)
Applications
- Fire Sprinklers
Approvals & Certifications
- FM
- UL 393
Enclosure, Body Material
- ABS (Polycarbonate Blend)
Lens
- Window: Polycarbonate Lens, Push-In
Materials of Construction
- Black Rubber Gauge Boot
- Bourdon Tube: "C" Shaped Bronze
- Patented PowerFlex Movement with Polyester Segment
- Pointer: Black, Aluminum
- Socket: Brass
NPT Connection
- 1/4" NPT Male
Operating Temperature
- -40° to 65° C (-40° to 150° F)
Pressure Range
- bar: 0 to 41.37
- kPa: 0 to 4,137
- psi: 0 to 600
Size
- 3-1/2" (90 mm)
