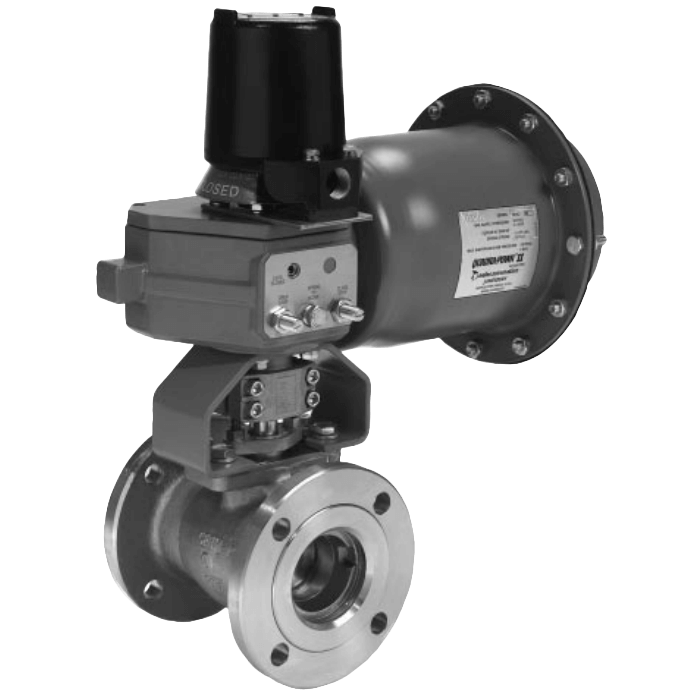

Jamesbury 716D/740D Flanged Ball Valve
Brand: MetsoThe Jamesbury polymeric-seated flanged ball valves feature a flexible-lip seat design that provides positive bi-directional shut-off for a variety of applications in industries ranging from chemical and petrochemical to refining, pulp and paper, and power.
Polymeric-seated flanged ball valves are available in sizes DN 15 to 150 in both full-bore and reduced-bore designs that fully conform to PED and DIN requirements.
A choice of body, trim, and seat materials is available to suit an extensive range of applications.
As an option, valves can be prepared for special services, such as chlorine clean, double block and bleed, oxygen clean, vacuum, NACE MR 0103, or cavity filler.
Specifications
Brand
Actuator Type
- Electric
- Pneumatic
Applications
- Chemical & Petrochemical
- Power
- Pulp & Paper
- Refineries
Approvals & Certifications
- ATEX
- CE
- PED 97/23/EC
Approvals & Certifications
- API 598
- API 607
- API 608
- Hydrostatic Pressure Test
- ISO 10497, 15848-1, 17292, 5752:1982, 9000, 5208
Ball Material
- 316 Stainless Steel
- Monel®
Bearing Material
- Stem: Filled PTFE
Bushing Material
- Stop: Stainless Steel
Enclosure, Body Material
- 316 Stainless Steel - A351 Typical CF8M
- Alloy Cast Steel (DIN 1.4408)
- Carbon Steel (A216 Typical WCB)
- Cast Steel (DIN 1.0619)
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - PN 16
- 1-1/2" (DN40) - PN 40
Flange Size - 1" (DN25)
- 1" (DN25) - PN 16
- 1" (DN25) - PN 40
Flange Size - 1/2" (DN15)
- 1/2" (DN15) - PN 16
- 1/2" (DN15) - PN 40
Flange Size - 2" (DN50)
- 2" (DN50) - PN 16
- 2" (DN50) - PN 40
Flange Size - 3" (DN80)
- 3" (DN80) - PN 16
- 3" (DN80) - PN 40
Flange Size - 3/4" (DN20)
- 3/4" (DN20) - PN 16
- 3/4" (DN20) - PN 40
Flange Size - 4" (DN100)
- 4" (DN100) - PN 16
- 4" (DN100) - PN 40
Flange Size - 6" (DN150)
- 6" (DN150) - PN 16
- 6" (DN150) - PN 40
Flange Type
- Raised Face (RF)
Flow Rate
- 8 to 650 Kv
Gasket Material
- Body: PTFE
Handle Assembly Material
- Handle, T Handle Adapter: Ductile Iron
- Handle: Stainless Steel
- Handle: Zinc-Plated Carbon Steel
Materials of Construction
- Coupling: 630 Stainless Steel (17-4 PH)
- Insert, Compression Plate: 316 Stainless Steel - A351 Typical CF8M
- Insert, Lock Washer, Indicator Stop, Washer: Zinc-Plated Carbon Steel (A216 Typical WCB)
- Insert, Stud: Alloy Cast Steel (DIN 1.4408, EN 10269, Grade 1.7225 / ASTM A193, Grade B7)
- Insert: Cast Steel (DIN 1.0619)
- Lock Washer, Handle Stop Spacer, Compression Plate, Stud, Rivet: Stainless Steel (ISO 3506, Grade A2)
- Stud: 304 Stainless Steel (ASTM A193, Grade B8)
Media
- Chemicals
- Steam
- Water
NACE & NIST
- NACE MR-0103
Name Plate, Tag Material
- Stainless Steel
Nut & Bolt Material
- Hex Nut, Bolt: Stainless Steel (ISO 3506, Grade A2)
- Hex Nut, Bolt: Zinc-Plated Carbon Steel ( EN 10269, Grade 1.1191 / ASTM A194, Grade 2H)
- Nut, Bolt: 304 Stainless Steel (ASTM A194, Grade 8)
Operating Pressure
- psi: 142.1 to 213.2 (kPa: 980 to 1,470, bar: 9.8 to 14.7) - 316 Stainless Steel (PN 16)
- psi: 208.9 to 232.1 (kPa: 1,440 to 1,600, bar:14.4 to 16) - Carbon Steel (PN 16)
- psi: 358.2 to 533.7 (kPa: 2,470 to 3,680, bar: 24.7 to 36.8) - 316 Stainless Steel (PN 40)
- psi: 522.1 to 580.2 (kPa: 3,600 to 4,000, bar: 36 to 40) - Carbon Steel (PN 40)
Packing Material
- Molecularly Enhanced PTFE
Port
- Full
- Reduced
Pressure Type
- Differential
Proof Pressure
- psi: 333.6 (kPa: 2,300, bar: 23) - 316 Stainless Steel (PN 16)
- psi: 348.1 (kPa: 2,400, bar: 24) - Carbon Steel (PN 16)
- psi: 812.2 (kPa: 5,600, bar: 56) - 316 Stainless Steel (PN 40)
- psi: 870.2 (kPa: 6,000, bar: 60) - Carbon Steel (PN 40)
Ring Material
- Retainer: Stainless Steel
Screw Material
- Cap Screw: Carbon Steel
- Hex Cap: 304 Stainless Steel (A193, Grade B8)
- Socket Cap Screw, Hex Cap: Stainless Steel (ISO 3506, A2)
Seat / Seal Material
- Body Seal, Primary Stem Seal: TFM
- Seat: Polymer
- Seat: XTREME
- Secondary Stem Seal: Graphite
Spring Material
- Disc, Conical, Grounding: Inconel®
Stem Material
- 316 Stainless Steel
- Monel®
Temperature Range
- -29° to 250° C (-20° to 482° F)
Trim Material
- 316 Stainless Steel
- Carbon Steel
