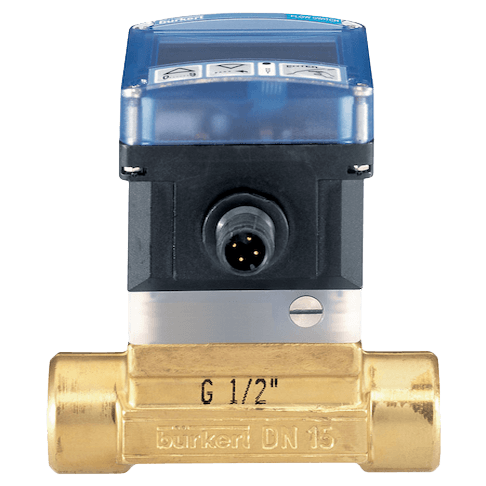

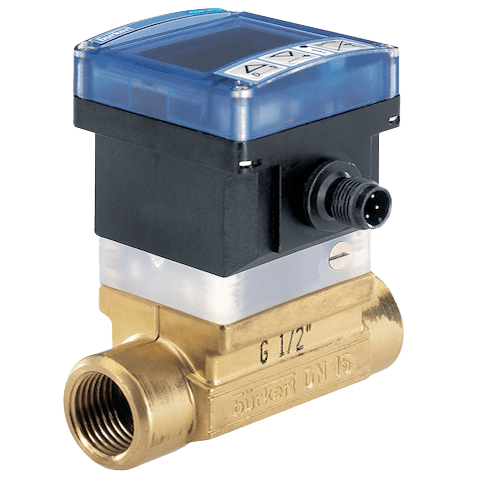

8039 Paddle Wheel Flowmeter with Optical Principle
Brand: Burkert Fluid Control Systems
This flowmeter with an extra-large display is specially designed to switch a valve and to establish a monitoring system or an On/Off control loop. Switching points can be programmed with the 3-key keypad under the display and the connection to the process in the piping is done with standard fittings. The version with a frequency output makes it possible to transmit the paddle wheel rotation speed (2 pulses/paddle wheel rotation) directly to a PLC.
Features- Indication, monitoring, transmitting and On/Off control in one device
- Configurable outputs (Transistor or relay)
- Optical measurement principle:
- Insensitive to magnetic fields
- Flow sense detection
- Insensitive to ferromagnetic particles in the fluid
Specifications
Ambient Temperature Range
- Operating & Storage: 0° to 60° C (32° to 140° F)
Approvals & Certifications
- EMC: EN 50081-1, 50082-2
- LVD EN 61010-1
- PED 97/23/CE
Bearing Material
- Ceramics (Al₂O3)
BSP Connection
- G 1" Female
- G 1/2" Female
- G 1/2" Male
- G 1/4" Male
- G 1-1/2" Female
- G 1-1/4" Female
- G 2" Female
- G 3/4" Female
Cable Length
- 328.1 feet (100 meters)
Circuit Protection
- Protect Against Short Circuit
Consumption
- Current: ≤ 80 mA (without Load)
Cover Material
- 20% Glass Fibre Reinforced
Diameter
- Pipe: 1/4 to 2" (DN06 to DN50)
Display
- Large Digital Display with 8-Characters
Electrical Connectors
- 0.14 to 0.5 mm² Cross Section
- Cable Plug: EN 175301-803
- Free Positionable Male Fixed Connector M12-5-Pin for Female 5-Pin M12 Cable Plug
Enclosure, Body Material
- Polycarbonate (PC)
Environmental Protection
- IP65
Humidity
- ≤ 80% Relative Humidity, Non-Condensing
Indication
- LED
Linearity
- ± 0.5% of Full Scale
Materials of Construction
- Front Panel Folio: Polyester
Measuring Error
- Standard K-factor: ± 3% of Reading
- Teach-In: ± 1% of Reading
Measuring Range
- 0.3 to 10 m/sec
NPT Connection
- 1" NPT Female
- 1/2" NPT Female
- 1/2" NPT Male
- 1-1/2" NPT Female
- 1-1/4" NPT Female
- 2" NPT Female
- 3/4" NPT Female
Operating Voltages
- 12-30 Vdc, Filtered & Regulated
Output
- Transistor for Threshold, Frequency: 5-30 Vdc
- Transistor for Threshold, Frequency: 700 mA - Maximum
Output Format
- Open Collector
Plug Material
- Cable Plug: Polyamide (PA)
Pressure Range
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 145.1
Process Temperature
- -15° to 100° C (5° to 212° F)
Relay Output
- 3 A at 250 Vac / 30 Vdc
Repeatability
- ± 0.4% of Reading
Reverse Polarity Protection
- Yes
Seat / Seal Material
- Seal: FKM
Shock
- EN 60068-2-27
Supply Voltage
- 12-30 Vdc
Switch Type
- Threshold (NPN and/or PNP), Frequency (NPN): Transistor
Vibration
- EN 60068-2-6
Viscosity
- 300 cSt, Maximum
Wetted Materials
- Axis: Ceramics (Al₂O3)
- Fitting: Brass
- Holder, Paddle Wheel: PVDF
