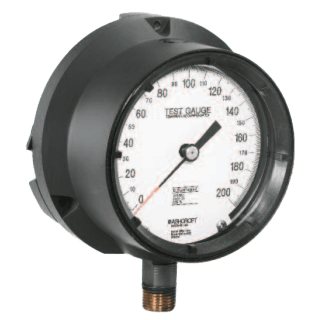

1082-XAY Test Gauge
Brand: Ashcroft Inc.This Ashcroft test gauge case style features a solid-front aluminum case with a threaded polypropylene ring.
The dial has a polished mirror band for pointer reflection to prevent parallax error and is available in 4-1/2", 6" dial sizes in both lower and back connection.
Pointer is a balanced-friction adjustable design with red knife edge tip for easy reading.
Features- Temperature-compensated movement significantly reduces temperature error
- MicroSpan adjustment for ease in span calibration
- Hydraulically staked movement with teflon-coated gears and bearings improves stability
- Externally adjustable dial (standard case)
- White aluminum dial, black numbers with polished mirror band
Specifications
Brand
Accuracy
- ± 0.25% of Full Scale (ASME B40.100, Grade 3A)
Applications
- Industrial Market: Specialized OEM Equipment
- Industrial Market: Test Bench Equipment
- Medical & Life Sciences: Calibration Labs
- Medical & Life Sciences: Test Measurement & Validation
Approvals & Certifications
- ISO 9001
Enclosure Finish
- Black Epoxy Coated
Enclosure, Body Material
- Aluminum
Lens
- Acrylic Lens
- Glass Lens
- Safety Glass
Materials of Construction
- Dial & Pointer (Black with Red-Painted, Knife-Edge Tip): Aluminum
- Socket: Brass
- Tube & Socket: Monel® 400
- Tube: Phosphor Bronze
Mounting
- Flush Mounted
- Stem
Movement
- 400 Series Stainless Steel Rotary Design, Teflon Steel Coated Bearings
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Pressure Range
- bar: 0 to 689.5
- Inches Hg: -30 to 0
- kPa: 0 to 68,950
- psi: 0 to 10,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Ring Material
- Threaded Black Polypropylene
Size
- Dial: 4.5"
- Dial: 6" (152.4 mm)
Temperature Effect
- Temperature Compensator: < 0.005% / °F, Maximum
