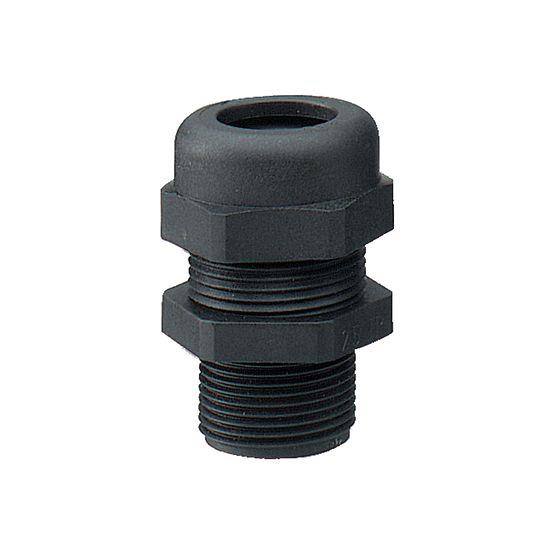

Emerson Appleton Cable Gland, Ex e
Images are representations only.

Appleton™ Ex e Polyamide Cable Glands

Brand: Appleton
Request Information
Favorite

Appleton™ Ex e Series Polyamide Cable Glands are Ex e Certified. They are suitable for non-armored cables certified for enclosures with the following protection modes: Ex e Increased safety, Ex nR Restricted breathing, and D Dust environment. They are also weatherproof IP68 or Ex I for non-armored cables making them ideal for intrinsic safety Ex i applications. The Ex e cable glands are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Features
  • Ex e Certified black polyamide body.

  • Ex e Certified weatherproof elastomer gasket.

  • Weatherproof IP68 or Ex I blue polyamide body Ral 5012.

  • Weatherproof IP68 or Ex I supplied with polyamide clamping ring.

  • Weatherproof IP68 or Ex I weatherproof elastomer gasket.

    • Specifications

    Brand

    Approvals & Certifications

    • Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66/68

    Ex E Certified Materials

    • Polyamide Body with Waterproof ThermoPlastic Elastomer Gasket & Neoprene Entry Thread Seal

    Weatherproof IP68 or Ex I Materials

    • Polyamide Body with Weatherproof ThermoPlastic Elastomer Gasket & Neoprene Entry Thread Seal
