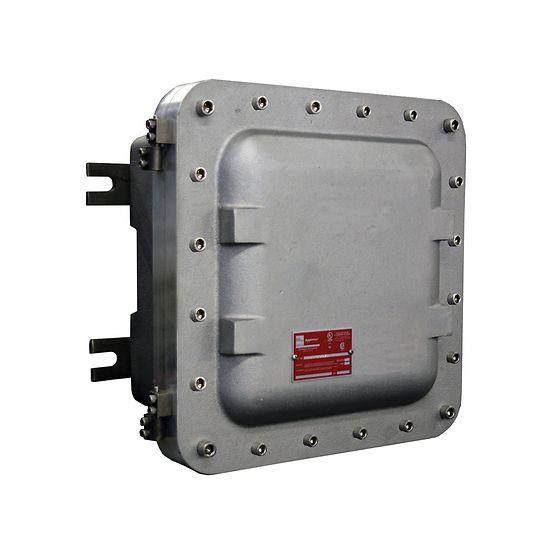

Appleton™ AJBEW Cast Junction Boxes
Brand: AppletonAppleton™ explosionproof, dust- ignitionproof AJBEW cast junction boxes can be supplied with a wide range of drilled and tapped outlets, and can be used for pulling and splicing wires as well as enclosing terminal blocks and bus bars. Offering a wide range of sizes and options, AJBEW junction boxes are suitable for use indoors or outdoors in classified hazardous locations.
Features- Explosionproof, dust-ignitionproof
- Precision machined flame path between box and cover
- Bolt on stainless steel slotted mounting feet for horizontal or vertical mounting
- Flexible hinge mounting either left or right side is standard on all boxes 12 x 12 x 06 and larger
- External flange maximizes internal space
- Wall thickness suitable for minimum of five full threads
- Provision for mounting pan
- Wide range of drilled and tapped outlets
- Ground lug package and installation instructions for termination of ground wires enclosed
- O-ring gasket insures watertight integrity
Specifications
Brand
Approvals & Certifications
- Zone 1 & 2 - 21 & 22, Ex II 2 GD, IP66, IK10
NEC/CEC Certifications & Compliances
- Class I, Division 1 & 2, Groups B, C, D, Class I, Zone 1 & 2, Groups IIA, IIB + H2, Class II, Division 1 & 2, Groups E, F, G, Class III, NEMA 4, 7B, C, D, 9EFG
Options
- Custom Drilling & Tapping, Set of 4 Standoffs, Drain, Breather, Desiccate Package, Ground Stud, Epoxy Powder Coat, Hinges & Terminal Blocks Available. See Catalog Pages for Details
Standard Materials & Finishes
- Sand Cast Copperfree (4/10 of 1% Max.) Aluminum Bodies & Covers with Shot Blast Finish. Stainless Steel Cover Bolts & Hinges. Neoprene O-Ring. Galvanized Steel Mounting Pan
