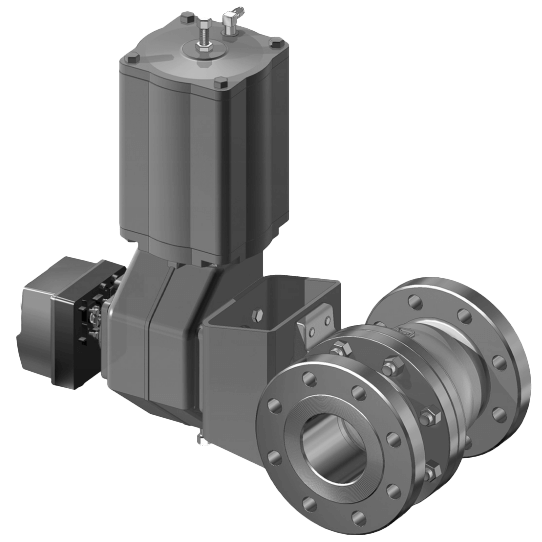

Neles Series X Full & Reduced Bore Ball Valve
Brand: MetsoMetso's Neles series X is a seat supported modular ball valve.
Neles X series valves incorporate robust stem to ball connection. This assures valves are delivering solid long lasting performance in high cycle isolation and control applications.
Application based seat selection assures valves are capable of delivering long lasting tightness even in most demanding applications.
Valve modularity widens the options in material selections to meet application specific requirements.
Valve series meets modern industry requirements concerning safety and emissions.
Specifications
Brand
Actuator Type
- Double-Acting
- Gear Operator
- Hand Operated
- Pneumatic
- Spring Return
Applications
- Chemical & Petrochemical
- Emergency Valves ESD/ESV
- Hydrocarbons
- Liquids, Gas & Steam
- LNG
- Moderate Control & Tight Shut-Off Applications
- Oil & Gas Production
- Power Plants
- Process Industry Applications
Approvals & Certifications
- Fire Tested API 607
- ISO 15848
- Material Certificate EN 10204-3.1
Approvals & Certifications
- ATEX
Ball Material
- AISI 316 Stainless Steel - CF8M
Bearing Material
- Thrust: Cobalt Based Alloy
- Thrust: Filled PTFE
Cap Material
- Body: AISI 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Body: Carbon Steel (WCB)
Enclosure, Body Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
- Carbon Steel (WCB)
Fill Material
- Graphite
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - 150# (ASME)
- 1-1/2" (DN40) - 300# (ASME)
Flange Size - 1" (DN25)
- 1" (DN25) - 150# (ASME)
- 1" (DN25) - 300# (ASME)
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ASME)
- 2" (DN50) - 300# (ASME)
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ASME)
- 3" (DN80) - 300# (ASME)
Flange Size - 4" (DN100)
- 4" (DN100) - 150# (ASME)
- 4" (DN100) - 300# (ASME)
Flange Size - 6" (DN150)
- 6" (DN150) - 150# (ASME)
- 6" (DN150) - 300# (ASME)
Flange Size - 8" (DN200)
- 8" (DN200) - 150# (ASME)
- 8" (DN200) - 300# (ASME)
Flange Size - F07
- F07 - 150#
- F07- 300#
Flange Size - F10
- F10 - 150#
- F10 - 300#
Flange Size - F12
- F12 - 150#
- F12 - 300#
Flange Size - F14
- F14 - 150#
- F14 - 300#
Flange Size - F16
- F16 - 150#
- F16 - 300#
Flange Size - F25
- F25 - 150#
- F25 - 300#
Flange Type
- Raised Face (RF)
Flow Rate
- 202 to 2,305 Kv - Reduced Bore (Standard Trim at Kv 90°)
- 73 to 1,176 Kv - Reduced Bore (Q-Trim at Kv 90°)
- 73 to 2,020 Kv - Full Bore (Q-Trim at Kv 90°)
- 91 to 8,000 Kv - Full Bore (Standard Trim at Kv 90°)
Gasket Material
- Body [Only in Reduced Bore 3" to 6" (DN 80 to 150)]: Graphite Filled Spiral Wound
- Body [Only in Reduced Bore 3" to 6" (DN 80 to 150)]: PTFE
- Body: AISI 316 Stainless Steel
Gland Material
- 316 Stainless Steel - ASTM A351 CF8M, 1.4408
Gland Packing Material
- Graphite
- PTFE (V-Ring)
Materials of Construction
- Key: AISI 329 Stainless Steel
- Locking Pin: Stainless Steel (XM-19)
- Spline Driver [2" to 8" (DN 50 to 200)], Stud [Not in Reduced Bore 3" to 6" (DN 80 to 150)], Retainer Plate: 316 Stainless Steel (CF8M, ASTM A 193 Grade B8M)
- Stud [Not in Reduced Bore 3" to 6" (DN 80 to 150)]: Alloy Steel [ASTM A 320 Grade L7M (B7)]
Media
- Gas
- Liquids
- Steam
Mounting
- Actuator: ISO 5211
NACE & NIST
- NACE MR-0103
- NACE MR-01-75
Nut & Bolt Material
- Hexagon Nut, Bolt [Not in Reduced Bore 3" to 6" (DN 80 to 150)]: 316 Stainless Steel (ASTM A 193 Grade 8M/B8M)
- Hexagon Nut, Bolt [Not in Reduced Bore 3" to 6" (DN 80 to 150)]: Carbon Steel [ASTM A 194 Grade 2 HM (2H/L7M)]
Packing Material
- Graphite
- PTFE (V-Ring)
Port
- Full
- Reduced
Ring Material
- Packing: Graphite
- Packing: PTFE
- Thrust [1" to 1-1/2" (DN 25 to 40)]: AISI 316 Stainless Steel
Seat / Seal Material
- Ball Seat: XTREME
- Seal: Graphite
- Seal: PTFE
Sensor, Probe Style
- Float
Shaft Material
- Stainless Steel (XM-19)
Spring Material
- Disc Spring Set: Electroless Nickel-Plated Spring Steel (EN 10083 to 1.8159)
Stem Material
- Stainless Steel (XM-19)
Temperature Range
- -50° to 260° C (-60° to 500° F) - Soft Seat X
Valve Size
- 1" to 8" (25 to 200 mm) - Full Bore
- 3" to 8" (75 to 200 mm) - Reduced Bore
Valve Type
- Manual
