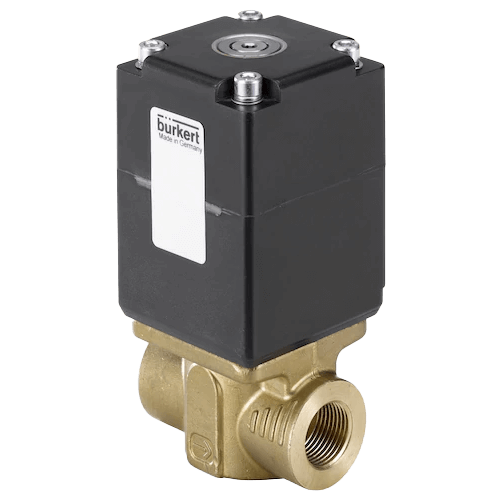

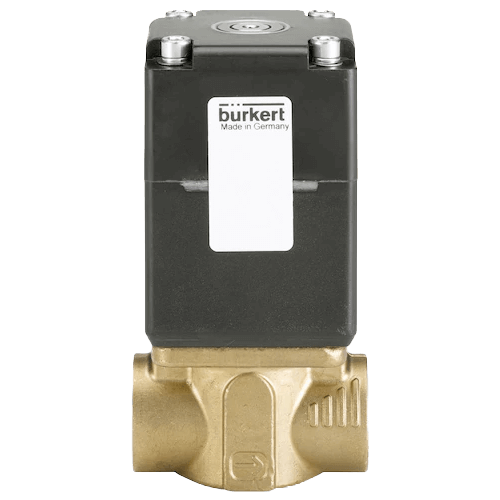

2875 2/2-Way Solenoid Control Valve
Brand: Burkert Fluid Control Systems
The direct-acting solenoid control valve Type 2875 is used as the regulating unit in control loops.
Due to an elastomeric seat seal the valve closes tight (integrated shut-off function), up to the DN specific nominal pressure, The plunger of the valve is assembled frictionless, which leads to an extraordinary adjustment characteristic.
This valve is particularly suitable for demanding control tasks (high control range, dry gases, etc.).Valve control takes place through a PWM signal. The duty cycle of the PWM signal determines the coil current and hence the position of the plunger. Optionally the valve can also be driven with DC voltage.
Features- Excellent range (1:200)
- Very good response
- Compact valve design
- Port connection 3/8” (9 mm) and 1/2” (13 mm)
Specifications
Ambient Temperature Range
- 55° C (131° F), Maximum
Approvals & Certifications
- ATEX - II 2 G EEx M II T4 or T6
- DVGW According to the European Gas Device Guidelines (DIN 3394-1)
- IECEx - Ex E Mb IIC T6 Gb
- UL
- UR
BSP Connection
- G 1/2" Female
- G 3/8" Female
Consumption
- Power: 16 W
Current
- Maximum
Differential Pressure
- psi: 0 to 181 (kPa: 0 to 1,250, bar: 0 to 12.5), Maximum
Duty Cycle
- 100% Duty Cycle Continuous Rating
Electrical Connectors
- Tag Connector (DIN EN 175301-803 Form A)
Electrical Contacts
- Normally Closed
Enclosure, Body Material
- Brass
- Stainless Steel
Flow Rate
- Water: 0.12 to 1.10 Kvs (m³/hour)
Frequency
- PWM Frequency: 900 Hz
Hysteresis
- < 5%
Media
- Neutral Gases & Liquids
Mounting Position
- Preferably with Actuator Upright
Nominal Pressure
- psi: 0 to 362.6 (kPa: 0 to 2,500, bar: 0 to 25)
NPT Connection
- 1/2" NPT Female
- 3/8" NPT Female
Orifice Size
- 0.07" to 0.31" (2 to 8 mm)
Power Supply
- 24 Vdc
Pressure Range
- psi: 0 to 362.6 (kPa: 0 to 2,500, bar: 0 to 25)
Process Temperature
- -10° to 90° C (14° to 194° F)
Ratio
- Span - 1:200
Repeatability
- Flow Measurement: < 0.5% of Full Scale
Response Time
- 25 milliseconds (10 -90%)
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Sensitivity
- Flow Measurement: < 0.25% of Full Scale
Solenoid Type
- 2/2-Way
