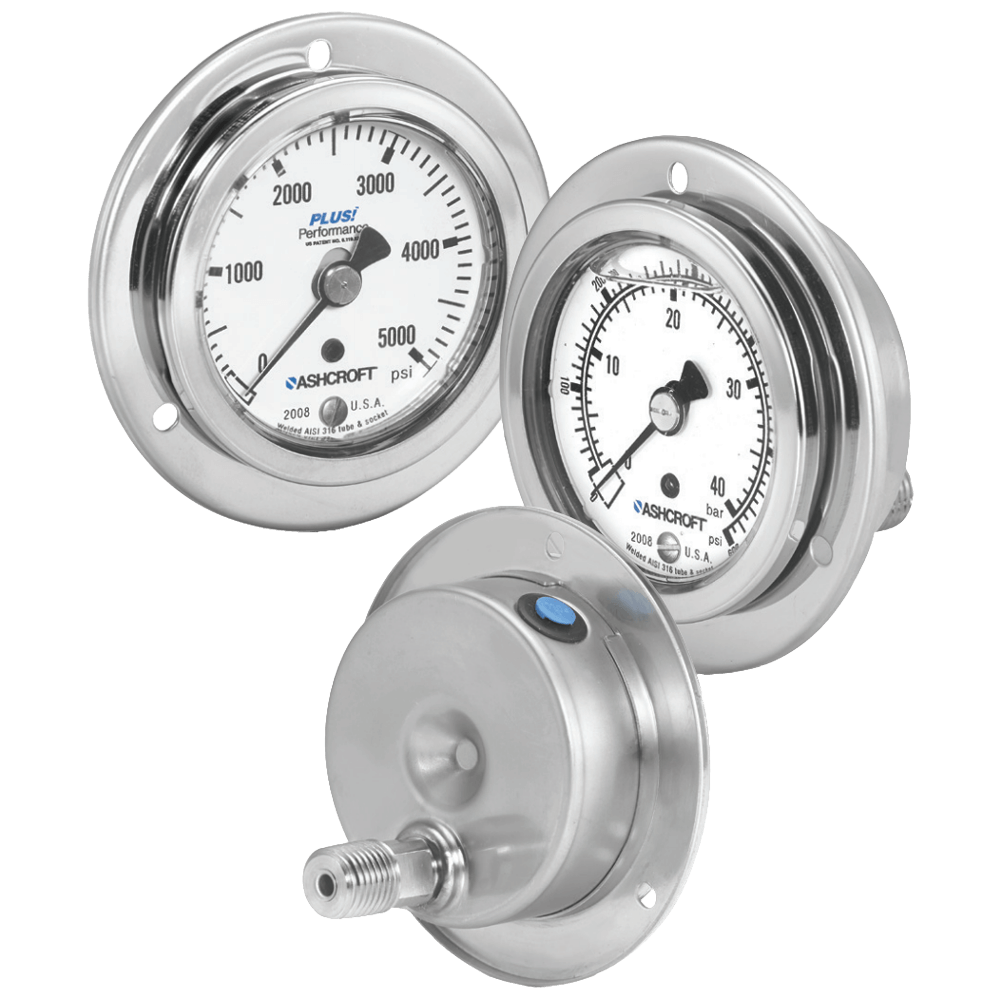

2008S Stainless Case, 63 mm Panel Builders Gauge
Brand: Ashcroft Inc.Specifications
- 3-hole front flange welded to case
- Corrosion resistant stainless steel case
- Dry gauges are field fillable
- PowerFlex movement provides superior resistance to shock, vibration and pulsation
- True Zero reduces reading errors by using "zero box" instead of conventional dial pins
- MSL helium leak tested to 1X10-6 scc/s
- PLUS! performance available for liquid filled performance with a dry gauge
- Ventable fill plug
Specifications
Brand
Accuracy
- Dry: ± 1.6% of Full Scale
Ambient Temperature Range
- Dry: -40° to 93° C (-40° to 200° F)
- Glycerin Fill: -7° to 66° C (20° to 150° F)
- PLUS!, Silicone & Halocarbon Fill: -40° to 66° C (-40° to 150° F)
Applications
- Deionized Water Flow
- Food & Beverage
- Hydraulics & Pneumatics
- OEM Equipment
- Oil & Gas Control Panels
- Pharmaceutical
Approvals & Certifications
- Hydrostatic/Pneumatic Test
- CRN
- PED
- RoHS
BSP Connection
- 1/4" BSP Male
- 1/4" BSPT Male
- G 1/4" Male
Enclosure, Body Material
- 304 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP54
- IP65
- IP66
- NEMA 4X
Fill Material
- Glycerin
- Halocarbon
- Silicone
Lens
- Polycarbonate Lens
Materials of Construction
- Dial (Black Figures on White Background), Pointer (Black): Aluminum
Mounting
- Flush Mounted
- Lower Back Mounting
- Panel Mount
- Screw Mount
Movement
- 304 Stainless Steel with Polyester Segment
NACE & NIST
- NIST
Name Plate, Tag Material
- Stainless Steel Tag Wired to Case
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
Pressure Range
- bar: 0 to 1,034
- Inches Hg: -30 to 0
- kPa: 0 to 103,400
- psi: 0 to 15,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Process Connection Material
- 316L Stainless Steel
Process Temperature
- Dry: -40° to 121° C (-40° to 250° F)
- Glycerin Fill: -7° to 93° C (20° to 150° F)
- PLUS!, Silicone & Halocarbon Fill: -40° to 93° C (-40° to 200° F)
Ring Material
- 304 Stainless Steel
- 316L Stainless Steel
SAE Connection
- 7/16"-20 SAE Male
Size
- Dial: 2.5" (63 mm)
Storage Temperature
- Dry: -40° to 121° C (-40° to 250° F)
- Glycerin Fill: -18° to 66° C (0° to 150° F)
- PLUS!, Silicone & Halocarbon Fill: -40° to 66° C (-40° to 150° F)
Tube Connection
- 1/4" Tube
Wetted Materials
- 316L Stainless Steel
