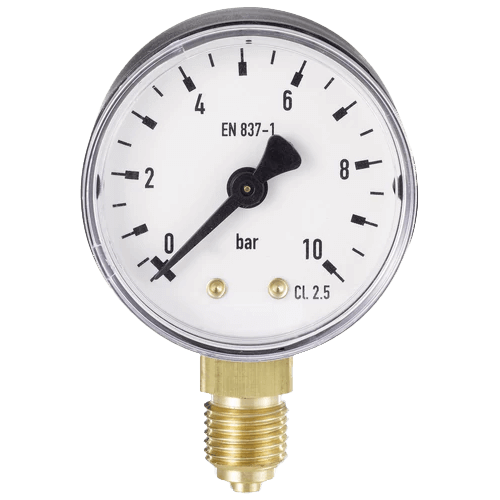

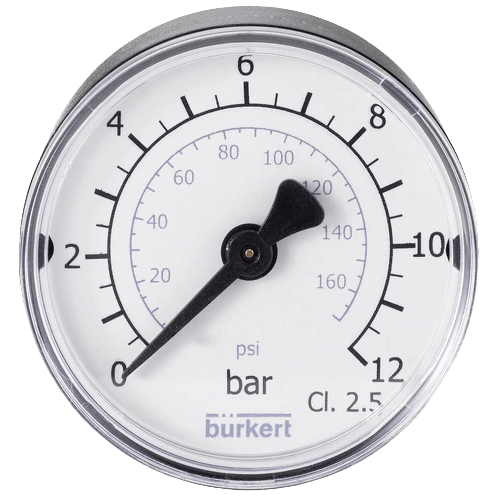

TAU001 Bourdon Tube Pressure Gauge
Brand: Burkert Fluid Control Systems
Manometer for the pressure measurement of neutral and aggressive gases and not crystallizing liquids with small viscosity, that will not attack copper alloy manometer interior parts. A circular bourdon tube in alloyed copper is used as sensor.
Features- For gases and not crystallizing liquids

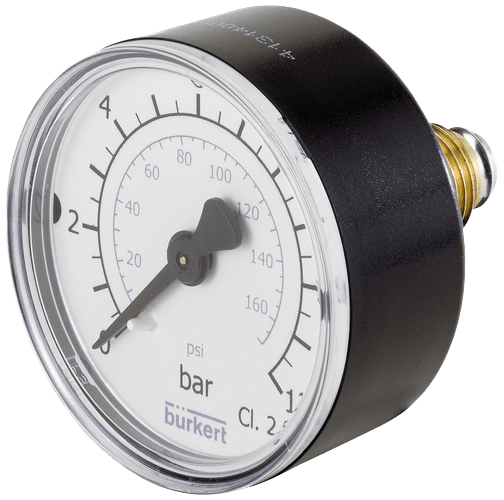

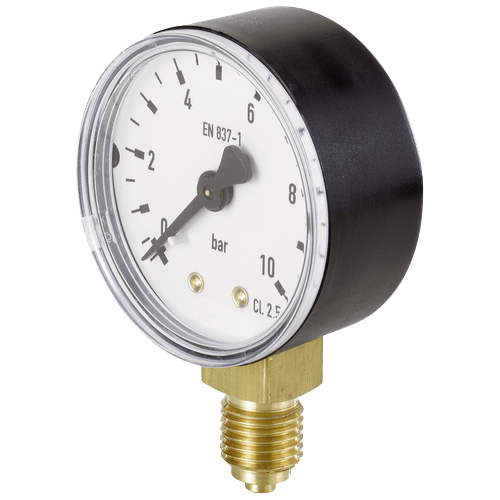

- Back or radial mount lower connection
- Different sizes and measurement ranges
Specifications
Accuracy
- Class 2.5 According to EN 837-1
- Fluctuating: 67% of Full Scale Value
- Short Time: 100% of Full Scale Value
- Steady: 75% of Full Scale Value
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
BSP Connection
- G 1/4" Male
- G 1/8" Male
Lens
- Window: Plastic, Crystal-clear, Snapp-fit
Materials of Construction
- Measuring Element Material, Motion Work Material: Alloyed Copper
- Pointer Material (Black), Dial (White): Plastic
Media
- Aggressive Gases
- Liquids with Small Viscosity
- Neutral
Pressure Range
- bar: 0 to 25
- kPa: 0 to 2,500
- psi: 0 to 362.6
Pressure Type
- Vacuum
Principle of Operation
- Bourdon Tube
Process Connection Material
- Alloyed Copper
Process Temperature
- 60° C (140° F), Maximum
Size
- Nominal Size: 1.57" to 2.48" (40 to 63 mm)
Temperature Effect
- Temperature Behaviour: ± 0.4%/10 K Related to 20° C (68° F)
