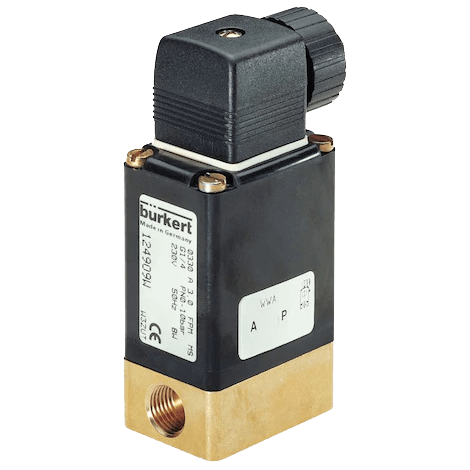

0330 Direct-Acting 2/2 or 3/2-Way Pivoted Armature Valve

Brand: Burkert Fluid Control Systems

Burkert Direct-Acting 2/2 or 3/2-Way Pivoted Armature Valve, 0330 Burkert Direct-Acting 2/2 or 3/2-Way Pivoted Armature Valve, 0330
The Burkert 0330 valve is a direct-acting, media-separated pivoted armature valve. It is available in 3/2- and 2/2-way versions. As a 3/2-way version, it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application.

The standard brass housing satisfies all European drinking water requirements. 316 Stainless steel, PVDF, and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. The 0330 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version

The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 - in combination with a stainless steel or plastic housing NEMA 250 Category 4X.
Features
  • Direct-acting, media-separated valve with diameter of up to DN 5
  • Maintenance-free pivoted armature technology
  • Vibration-proof, block screwed coil system
  • Suitable for aggressive alkaline and acidic solutions
  • Service-friendly, robust manual operation

Specifications

Brand

Actuator Type

  • Direct-Acting

Ambient Temperature Range

  • Maximum

Approvals & Certifications

  • BAM
  • CSA General-purpose Valve for Hazardous Location Class I/II Division 2, & Class III T4
  • DNV GL (Formerly Germanischer Lloyd)
  • EAC
  • FDA
  • FM Non-Incendive for Class I/II/III Division 2, T4, Explosion-proof for Class I Division 1, & Dust-Ingnitionproof for Class II/III Division 1, T4
  • NAMUR
  • UL Recognized, Listed General-purpose Valve

BSP Connection

  • G 1/4" Female
  • G 1/8" Female
  • 1/4" BSPT Female

Consumption

  • Power Consumption Frequency [AC (Operation), DC (Cold) Impulse (Inrush Winding)], DC (Cold): 11 W
  • Power Consumption Frequency [DC (Warm) Impulse (Inrush Winding)], DC (Warm), AC (Operation): 8 W
  • Power Consumption Frequency AC (Hold) Impulse (Inrush Winding): 20 VA
  • Power Consumption Frequency AC (Hold): 15 VA
  • Power Consumption Frequency AC (Inrush): 30 VA

Diaphragm Material

  • EPDM
  • FFKM
  • FKM
  • NBR

Duty Cycle

  • Duty Cycle for Brass, Stainless Steel & PVDF (ED for 5W Version): 100%
  • Duty Cycle for PP: 40% ED (60% Intermittent Operation) in 30 minutes for 8 W Version

Electrical Connectors

  • Moulded Cable or Terminal Box
  • Pin Terminal According to DIN EN 175301-803 Form A for Cable Plug Typical 2508/2509

Electrical Contacts

  • Normally Closed
  • Normally Open

Enclosure, Body Material

  • 316 Stainless Steel, 1.4401
  • Brass
  • Metal
  • Plastic
  • Polypropylene (PP)
  • PVDF (Polyvinylfluoride)

Environmental Protection

  • IP65 with Cable Plug
  • IP66
  • IP67
  • NEMA 250 4X
  • Vibration-Proof

Flow Rate

  • Water (AC) 50/60 Hz: 0.11 to 0.29 Kv (m³/hour) - Metal Body
  • Water (DC): 0.08 to 0.29 Kv (m³/hour) - Metal Body
  • Water: 0.13 to 0.40 Kv (m³/hour) - Plastic Body

Insulation

  • Coil Insulation Class H

Materials of Construction

  • Coil: Epoxy

Mounting Position

  • Preferably with Actuator Upright

NPT Connection

  • 1/4" NPT Female

O-Ring Material

  • EPDM
  • FFKM
  • FKM
  • NBR

Orifice Size

  • 0.078" to 0.157" (2 to 4 mm)

Override

  • Manual Override

Pressure Range

  • DC, Impulse - psi: 0 to 174 (kPa: 0 to 1,200, bar: 0 to 12) - Plastic Body
  • Impulse - psi: 0 to 232.1 (kPa: 0 to 1,600, bar: 0 to 16) - Metal Body, Plastic Body (AC) 50/60 Hz
  • Vacuum - psi: -14.21 to 145 (kPa: -98 to 1,000, bar: -0.98 to 10)

Process Temperature

  • 0° to 80° C (32° to 176° F) for Body Material Brass or Stainless Steel (NBR), PP or PVDF (NBR, FKM)
  • EPDM: -30° to 80° C (-22° to 176° F) for Body Material PP or PVDF
  • EPDM: -30° to 90° C (-22° to 194° F) for Body Material Brass or Stainless Steel
  • FFKM: 5° to 80° C (41° to 176° F) for Body Material PP or PVDF
  • FFKM: 5° to 90° C (41° to 194° F) for Body Material Brass or Stainless Steel
  • FKM: 0° to 90° C (32° to 194° F) for Body Material Brass or Stainless Steel

Response Time

  • Frequency AC Opening, Closing: 8 to 15 milliseconds
  • Frequency DC Opening, Closing: 10 to 20 milliseconds

Seat / Seal Material

  • Seal: EPDM (Medium: Alkalis, Acids to Medium Concentrations, Alkaline Washing & Bleaching Lyes)
  • Seal: FFKM (Medium: Aggressive Mediums, Hot Air, Hot Oils)
  • Seal: FKM (Medium: Oxydizing Acids & Substances, Hot Oils with Additives, Salt Solutions, Waste Gases, Oxygen)
  • Seal: NBR (Medium: Neutral Medium Such as Compressed Air, Town Gas, Water, Hydraulic Oil, Oils & Fats without Additives, Oxygen)
  • Seat: 316 Stainless Steel, 1.4401
  • Seat: Brass
  • Seat: Polypropylene (PP)
  • Seat: PVDF (Polyvinylfluoride)

Solenoid Type

  • 2/2-Way
  • 3/2-Way

Tolerance

  • Voltage Tolerance: ± 10%

Viscosity

  • Maximum

Voltage

  • 120-240 V / 60 Hz
  • 12-24 Vdc
  • 24-230 V / 50 Hz
