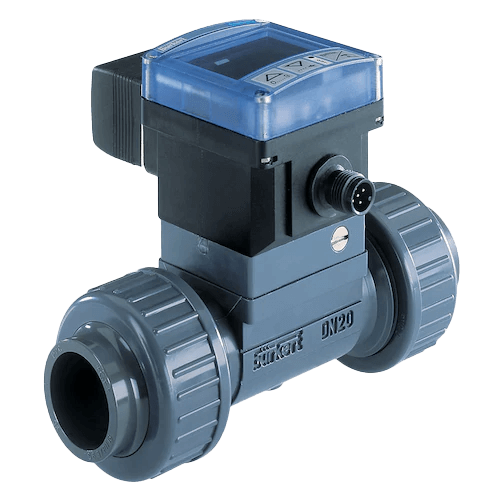

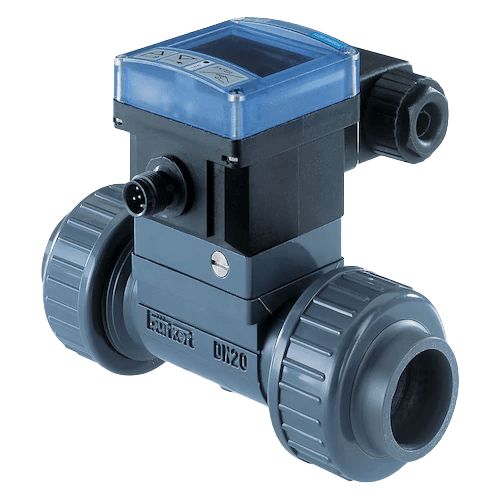

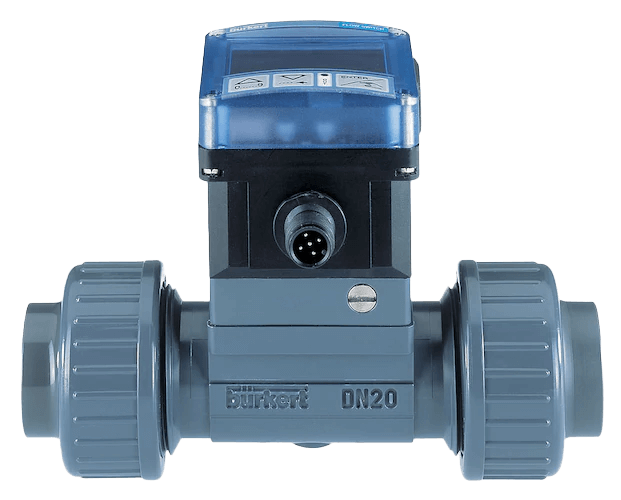

8032/SE32 Flowmeter with Paddle Wheel
Brand: Burkert Fluid Control Systems
This intelligent flowmeter/transmitter/threshold detector with display is designed for use in clear, neutral or aggressive liquids and specially to switch a valve and to establish a monitoring system or an On/Off control loop. The switching points can be configured with the 3 keys below the display. The 8032 compact version (SE32 transmitter + S030 sensor-fitting) is available with On/Off output or with process value output.
The remote version (SE32 transmitter) has a transistor output. The connection of the compact version to the process in the piping is done with standard INLINE sensor-fittings.
Features- Indication, monitoring, transmitting and On/Off control in one device
- Selectable outputs (transistor or relay)
- Automatic calibration using Teach-In
- Process value output: 4-20 mA
- Flow threshold detector
Specifications
Accuracy
- 4-20 mA Output Uncertainty: ± 0.5%
Ambient Temperature Range
- Compact Version (Operating & Storage): -10° to 60° C (14° to 140° F)
- Remote Version (Operating & Storage): 0° to 60° C (32° to 140° F)
- UL-recognized: 0° to 40° C (32° to 104° F)
Approvals & Certifications
- EN ISO 5167-1
Approvals & Certifications
- CE
- EU Directives
- PED 2014/68/EU
- UL (C,US): UL 61010-1 + CAN/CSA-C22.2 No.61010-1
Bearing Material
- Ceramics
Cable Length
- Remote Sensor Connection: 164 feet (50 meters), Maximum
- Voltage Supply Cable: 328.1 feet (100 meters), Maximum
Circuit Protection
- Short Circuit: Protected for Transistor Outputs
Consumption
- Current (Compact Version [without Load] & Remote Version [without Load] + Consumption of the Sensor): ≤ 80 mA
Cover Material
- Glass Fibre Reinforced
Diameter
- Pipe: 1/4 to 2-1/2" (DN06 to DN65) - SE32
Display
- 8-Digit LCD with Backlighting
Electrical Connectors
- 1/2" NPT Cable Plug
- Compact Version, Wall-mounted Version: Free Positionable 5-Pin M12 Male Fixed Connector
- Compact Version: 8-Pin M12 Male Fixed Connector
- Compact Version: Cable Plug According to EN 175301-803
- M16 x 1.5 mm Cable Plug
- Panel-mounted Version: Terminal Strips
- Remote Sensor Connection: 0.5 mm², Maximum
- Shielded Cable
- Wall-mounted Version: 4-Pin M12 Female Fixed Connector
Enclosure, Body Material
- Polycarbonate (PC)
Environmental Protection
- Compact & Wall-mounted Version: IP65
- Panel-mounted Version (Front Plate): IP54
- Panel-mounted Version (Rear Side, Inside the Cabinet): IP20
Frequency
- Input (Remote Version) - Pulse Signal: 2 to 400 Hz
- Output (Transistor): 0 to 300 Hz
Humidity
- ≤ 80% Relative Humidity, Non-Condensing
Indication
- LED
Input Impedance
- 10 KW
Linearity
- ± 0.5% of Full Scale - SE32
Loop Impedance
- Process Value (Compact Version): 1,000 ohms at 30 Vdc, Maximum
- Process Value (Compact Version): 1,300 ohms at 36 Vdc, Maximum
- Process Value (Compact Version): 200 ohms at 12 Vdc, Maximum
- Process Value (Compact Version): 450 ohms at 18 Vdc, Maximum
- Process Value (Compact Version): 700 ohms at 24 Vdc, Maximum
Materials of Construction
- Fixed Connector M12: Brass (CuZn)
- Fixed Connector M12: Nickel-Plated
- Fixed Connector M12: Polyamide (PA)
- Front Panel Folio: Polyester
Measuring Error
- Measurement Deviation (Standard K-factor): ± 3% of Measured Value - SE32
- Measurement Deviation (Teach-In): ± 1% of the Measured Value - SE32
Measuring Range
- 0.3 to 10 m/sec - SE32
Mounting
- Compact Mounting
- Panel-mounted
- Wall Mounted
Output
- Process Value (Compact Version): 4-20 mA
- Transistor (NPN [Remote Version]): 30 Vdc, Maximum
- Transistor (NPN): 0.2-36 Vdc
- Transistor: 500 mA - Maximum
- Transistor: 700 mA - Maximum
Output Format
- Transistor: Open Collector
Pipe Connection
- DN15 Pipe
- DN20 Pipe
- DN25 Pipe
- DN32 Pipe
- DN40 Pipe
- DN50 Pipe
- DN65 Pipe
Plug Material
- Cable Plug: Polyamide (PA)
Power Supply
- Compact Version: 12-36 Vdc ± 10%, Filtered & Regulated
- Remote Version - 8020, 8030: 12-30 Vdc, Filtered & Regulated
- Remote Version - 8041: 18-30 Vdc, Filtered & Regulated
- Remote Version - Other: 12 Vdc Minimum, Filtered & Regulated
- Remote Version - Other: 30 Vdc, Maximum
Pressure Range
- bar: 0 to 16 - SE32
- kPa: 0 to 1,600 - SE32
- psi: 0 to 232 - SE32
Process Temperature
- PP: 0° to 80° C (32° to 176° F) - SE32
- PVC: 0° to 50° C (32° to 122° F) - SE32
- PVDF, Brass or Stainless Steel: -15° to 100° C (5° to 212° F) - SE32
Relay Output
- Compact Version: 3 A at 30 Vdc
- Compact Version: 3 A at 48/250 Vac
Repeatability
- ± 0.4% of the Measured Value - SE32
Response Time
- 3 seconds
Reverse Polarity Protection
- Yes
Screw Material
- Stainless Steel
Seat / Seal Material
- Seal: EPDM
- Seal: FKM
Switch Type
- Transistor: NPN and/or PNP
Tri-Clamp Connection
- DN15 Tri-Clamp®
- DN20 Tri-Clamp®
- DN25 Tri-Clamp®
- DN32 Tri-Clamp®
- DN40 Tri-Clamp®
- DN50 Tri-Clamp®
- DN65 Tri-Clamp®
Viscosity
- 300 cSt, Maximum
Welded Connection
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
- DN 65 Weld End
Wetted Materials
- Axis: Ceramics
- Fitting, Sensor Armature, Paddle Wheel: PVDF
- Fitting, Sensor Armature, Wall-mounted Holder: PVC
- Fitting, Sensor Armature: Brass
- Fitting, Sensor Armature: Polypropylene (PP)
- Fitting, Sensor Armature: Stainless Steel
