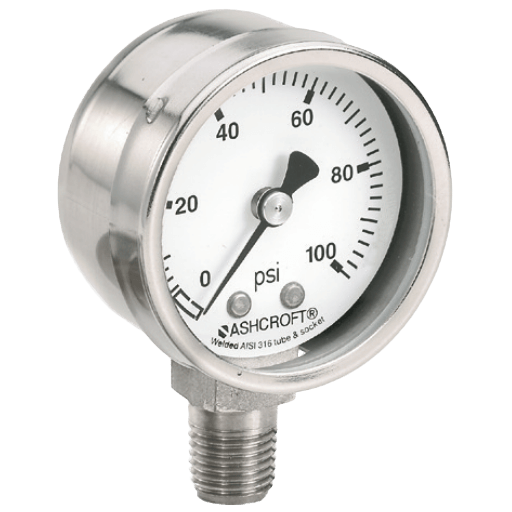

1008S 50 mm Stainless Steel Case Pressure Gauge
Brand: Ashcroft Inc.The Ashcroft® 50mm 1008S pressure gauge is a compact, all-stainless steel design for limited space installations requiring corrosion resistance.
This provides the user with an economical solution for harsh environment pressure measurement.
Features- ASME ±3-2-3% grade B accuracy
- All-stainless steel construction
- Dry or liquid-filled versions
- Lower or center back connect
- Glass window standard
- Front flange or U-clamp available for flush mounting
Specifications
Brand
Accuracy
- ASME ± 3-2-3% Grade B
Ambient Temperature Range
- Dry: -40° to 93.3° C (-40° to 200° F)
- Glycerin Filled: -6.6° to 65.5° C (20° to 150° F)
Applications
- OEM Equipment
- Pumps & Compressors
Approvals & Certifications
- CRN
- RoHS
Enclosure, Body Material
- 304 Stainless Steel
Environmental Protection
- IP54
- NEMA 3
Fill Material
- Glycerin
Lens
- Glass Lens
- Polycarbonate Lens
- Safety Glass
Materials of Construction
- Bourdon Tube & Socket: 316 Stainless Steel
- Dial (Black Figures on White Background), Pointer (Black): Aluminum
Mounting
- Flush Mount
- Panel Mount
- Stem
Movement
- Stainless Steel, Gear Typical
NPT Connection
- 1/4" NPT Male
- 1/8" NPT Male
Pressure Range
- bar: 1 to 1,379
- Inches Hg: -30 to 0
- kPa: 103.4 to 137,900
- psi: 15 to 20,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Ring Material
- 304 Stainless Steel Slip Design Friction Fit
Size
- 2" (50 mm)
