Ashcroft Stainless Steel Case Gauge, 1009 Duralife
Images are representations only.

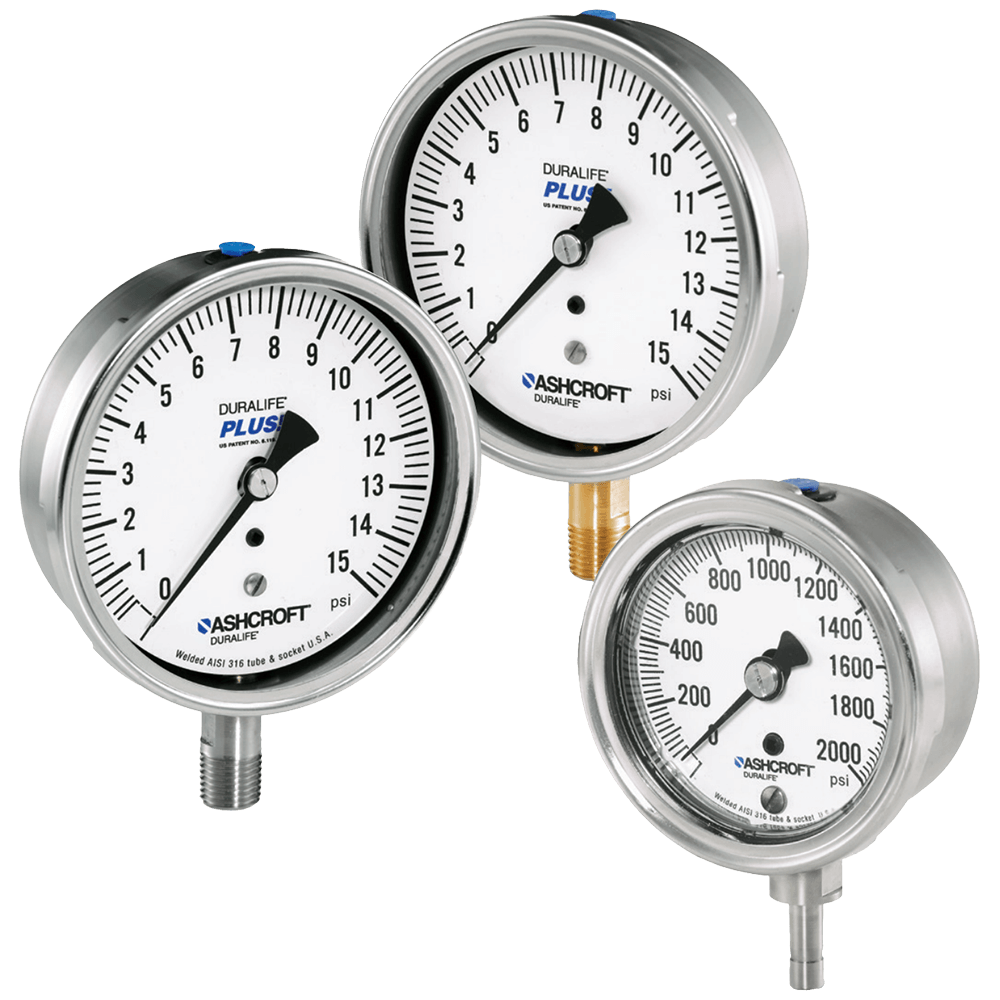

1009 Duralife Stainless Steel Case Gauge

Brand: Ashcroft Inc.
Request Information
Favorite

The Ashcroft® 1009AW/SW pressure gauge offers exceptional quality, durability, and performance.

An ideal choice for satisfying most applications and installation requirements.
Features
  • Meets ASME B40.100 specifications
  • Corrosion resistant stainless steel case
  • Dry gauges are field fillable
  • PowerFlex movement provides superior resistance to shock, vibration and pulsation
  • True Zero reduces reading errors by using "zero box" instead of conventional dial pins
  • PLUS! performance available for liquid filled performance with a dry gauge
  • MSL helium leak tested to 1X10-6 scc/s
  • Ventable fill plug
  • Accessory kits for easy panel mounting

View Details

Specifications

Brand

Accuracy

  • ± 1.5% of Span (Liquid Filled)
  • ASME B40.100, Grade 1A, ± 1% of Span (Dry)

Ambient Temperature Range

  • Dry: -40° to 93° C (-40° to 200° F)
  • Glycerin Fill: -7° to 66° C (20° to 150° F)
  • PLUS!, Silicone & Halocarbon Fill: -40° to 66° C (-40° to 150° F)

Applications

  • Autoclave
  • Boilers
  • Deionized Water Flow
  • Equipment Skids
  • Hydraulics & Pneumatics
  • Pumps & Compressors
  • Severe Ambient Conditions
  • Specialized OEM Equipment

Approvals & Certifications

  • CRN
  • PED
  • RoHS

BSP Connection

  • 1/4" BSP Male
  • 1/4" BSPT Male
  • G 1/4" Male

Enclosure, Body Material

  • 304 Stainless Steel
  • 316L Stainless Steel

Environmental Protection

  • IP54
  • IP65
  • IP66
  • NEMA 4X

Fill Material

  • Glycerin
  • Halocarbon
  • Silicone

Lens

  • Polycarbonate Lens
  • Polysulfone
  • Safety Glass

Materials of Construction

  • Dial (Black Figures on White Background), Pointer (Black, Micrometer Adjustable): Aluminum

Mounting

  • Back Mounting
  • Lower Back Mounting

Movement

  • Hairspring Assembly, Pinion: 304 Stainless Steel
  • Segment: Glass-Filled Polyester

NACE & NIST

  • NIST

Name Plate, Tag Material

  • Stainless Steel

NPT Connection

  • 1/2" NPT Male
  • 1/4" NPT Male
  • 1/8" NPT Male

Pressure Range

  • bar: 0 to 1,034
  • Inches Hg: -30 to 0
  • kPa: 0 to 103,400
  • psi: 0 to 15,000

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Process Connection Material

  • Aluminum Bronze Socket
  • Socket: 316L Stainless Steel

Process Temperature

  • Dry: -40° to 121° C (-40° to 250° F)
  • Glycerin Fill: -7° to 93° C (20° to 150° F)
  • PLUS!, Silicone & Halocarbon Fill: -40° to 93° C (-40° to 200° F)

Ring Material

  • 304 Stainless Steel
  • 316L Stainless Steel

SAE Connection

  • 7/16"-20 SAE Male

Size

  • Dial: 2.5" (63 mm)
  • Dial: 3.5" (100 mm)

Storage Temperature

  • Dry: -40° to 121° C (-40° to 250° F)
  • Glycerin Fill: -18° to 66° C (0° to 150° F)
  • PLUS!, Silicone & Halocarbon Fill: -40° to 66° C (-40° to 150° F)

Tube Connection

  • 1/4" Tube

UNF/UNC Connection

  • 7/16"-20 UNF Male-3A
  • 9/16"-18 UNF Male-2A

Wetted Materials

  • 316L Stainless Steel
