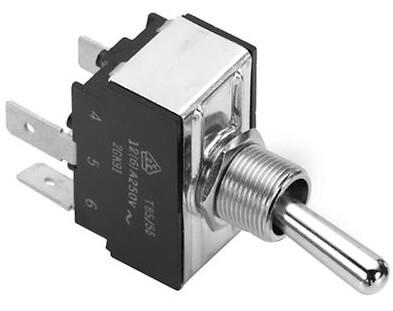

Images are representations only.

McGill™ 0121/0140 Series Multi-Pole Toggle Switches

Brand: Appleton

Emerson Appleton Multi-Pole Toggle Switch, 0121/0140 Series
0121/0140 Series Multi-Pole Toggle Switches are full-size, single pole toggle switches. They are available in electrical ratings to meet a variety of requirements. 0121/0140 Series are ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life. They are ideal for use in marine, food service, generator, industrial control and office automation markets. They are suitable for use in low voltage Vdc applications.
Features
  • Ideal for use in marine, food service, generator, industrial control and office automation markets.

  • A variety of circuits are available.

  • Available with screw, solder, and 1/4” quick connect terminals.

  • Mounting hardware and terminal screws (where applicable) furnished unassembled.

  • Mounting hardware consists of nickel plated hex nut and knurled nut.

  • Indicating plate is furnished for maintained ON-OFF circuits.

  • Bat handle and bushing are nickel plated brass.

  • Phenolic base +150 °C (+302 °F).

    • Specifications

    Brand

    Approvals & Certifications

    • UL Recognized Component. UL Listed for Ordinary Locations. CSA Listed for Ordinary Locations. RoHS Compliant

    Circuitry

    • ON - OFF, ON OFF ON, ON - ON, (ON) - OFF, (ON) OFF (ON), ON - (OFF), ON - (ON), (OFF) - ON, ON OFF (ON), (ON) ON ON

    Electrical Specification

    • SPTT, DPST, DPDT, 3PST, 3PDT, 4PST, 4PDT

    Four Pole Switch Ratings

    • 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 hp, 250 Vac, 1, 2 or 3-Phase 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 hp, 125-250 Vac, 1, 2 or 3-Phase

    Single / Double Pole Switch Ratings

    • 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 hp, 250 Vac 15 Amp, 125 Vac, 10 Amp, 250 Vac, 3/4 hp, 125-250 Vac

    Three Pole Switch Ratings

    • 6 Amp, 600 Vac, 17 Amp, 125 Vac, 12 Amp, 250 Vac, 2 hp, 480-600 Vac, 3-Phase 6 Amp, 600 Vac, 17 Amp, 125 Vac, 12 Amp, 250 Vac, 1-1/2 hp, 240 or 250 Vac, 1, 2 or 3-Phase, 2 hp, 480-600 Vac 3, Phase
