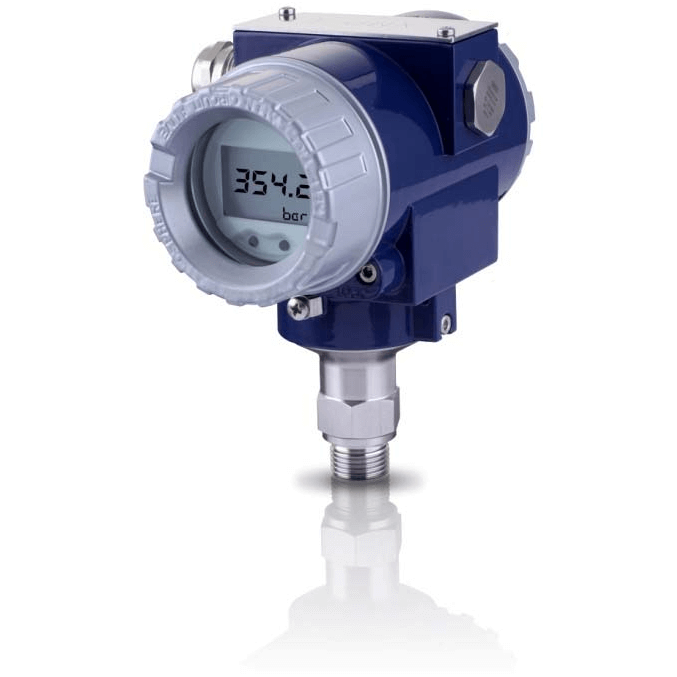

XMP i Pressure Transmitter
Brand: BD SensorsThe process pressure transmitter XMP i has been especially designed for the process industry and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids psi: 0 to 8,702 (kPa: 0 to 60,000, bar: 0 to 600). Different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures 0° to 300° C (0° to 572° F). The transmitter is as a standard equipped with HART-Communication; the customer can choose between a two chamber aluminum die cast case or a stainless field housing.
Specifications
Brand
Approvals & Certifications
- CE
- EHEDG
- EMC: Emission & Immunity According to EN 61326, 2004/108/EC
- FDA
- IBExU 05-ATEX-1106 x for AX12-XMP I, IBExU 12-ATEX-1045 x for AX17-XMP I
- IEC 60770
- PED: 97/23/EC
- REACH
- RoHS
- TÜV NORD
BSP Connection
- G 1" Male
- G 1/2" Male
Diaphragm Material
- 316L Stainless Steel
- Hastelloy® C-276
- Tantalum
Enclosure, Body Material
- 316L Stainless Steel
- Die Cast Aluminum
Environmental Protection
- IP67
Fill Material
- Silicone Oil
Flange Size - 1" (DN25)
- 1" (DN25) - PN 40
Flange Size - 2" (DN50)
- 2" (DN50) - 150# (ANSI B16.5)
- 2" (DN50) - PN 40
Flange Size - 3" (DN80)
- 3" (DN80) - 150# (ANSI B16.5)
- 3" (DN80) - PN 16
NPT Connection
- 1/2" NPT Male
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: -0.4 to 600
- kPa: -40 to 60,000
- psi: -5.80 to 8,702
Pressure Type
- Absolute
- Gauge
Tri-Clamp Connection
- 1" Tri-Clamp® (DIN 32676)
- 1-1/2" Tri-Clamp® (DIN 32676)
- 2" Tri-Clamp® (DIN 32676)
- 3/4" Tri-Clamp® (DIN 32676)
Wetted Materials
- FFKM
- FKM
