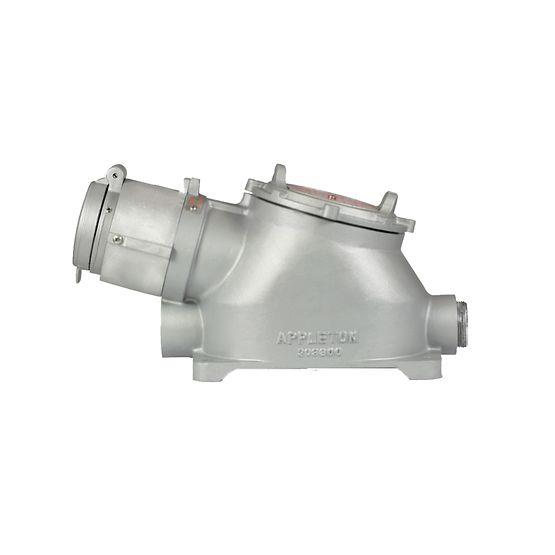

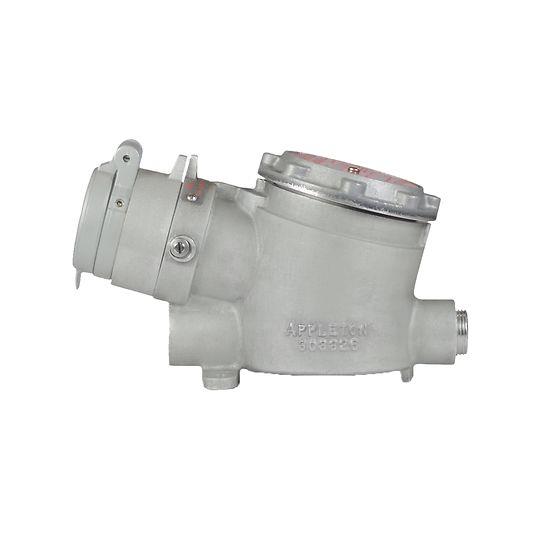

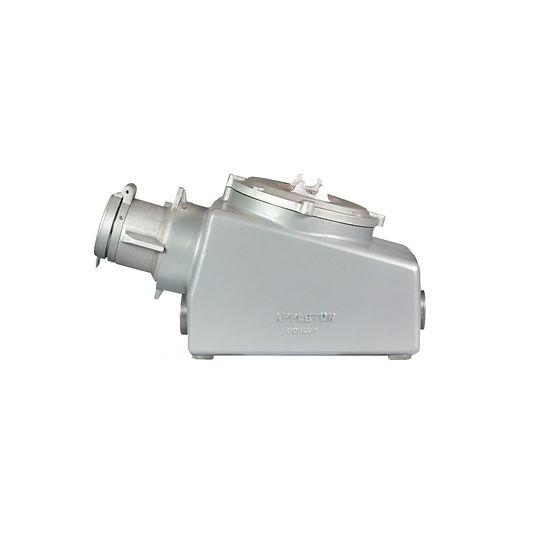

Appleton™ FSQC 30, 60 and 100 Amp Series Receptacles and Powertite™ Plugs

Brand: Appleton

Emerson Appleton Receptacle and Powertite Plug, FSQC Emerson Appleton Receptacle and Powertite Plug, FSQC
FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.
Features
  • “Interlocked Disconnect Switch” provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch.

  • To operate, insert plug and turn receptacle face to ON position. To remove plug, turn to OFF position and pull plug out.

  • Style 2 (shell and extra pole) grounding.

  • Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied.

  • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact.

  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking.

  • Contacts have beryllium copper wire springs.

  • Tapped NPT conduit openings at top and bottom: 30 Amp 3/4", 60 Amp 1-1/2", 100 Amp 2".

  • Large housing provides ample wiring room.

  • Powertite™ Series plug fits hazardous location FSQC receptacles.

    • Specifications

    Brand

    Amperage

    • 30, 60 or 100 A

    Hazardous Area Classification

    • Class I, Division 1, & 2, Groups B, C, D, Class II, Division 1, & 2, Groups F, G, Class III, NEMA 3, 3R, 4, 4X, 7CD, 9FG

    Materials & Finishes

    • Receptacles, Mounting Box, Covers & Plug Housings are Copperfree (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat. Insulating Blocks are Fiber Glass Reinforced Polyester.

    Mounting Box Entries

    • Feed-Thru

    Number of Poles

    • 4

    Number of Wires

    • 3

    Plug Cable Diameter

    • .390 - 1.375 or .875 - 1.906"

    Voltage

    • 120 Vac, 240 Vac, 480 Vac or 600 Vac

    Wire Range

    • 30: #10-#8, 60: #6-#4, 100: #2-1/0

    Documentation

    Product Manuals

    Catalogs
